Dual range laser diode driver for low power applications

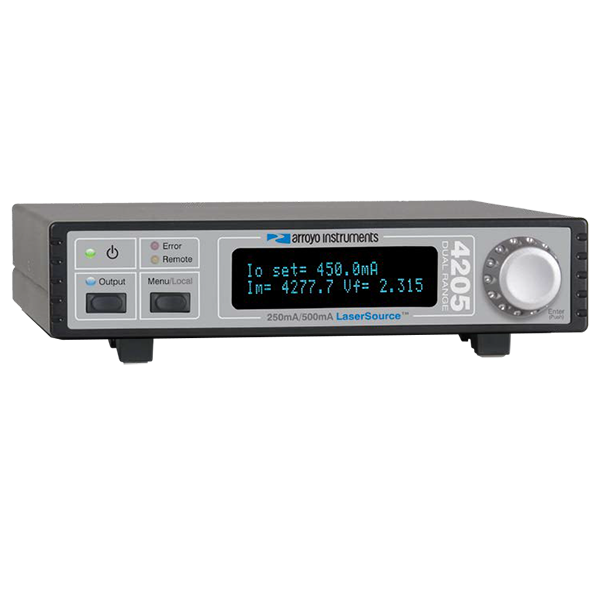

4200-DR Series LaserSource

Arroyo Instruments Logo

The 4200-DR Series LaserSource dual range laser diode driver is ideal for low power applications, such as butterfly and TO-can lasers, as well as many LED applications. The compact enclosure takes up little space and offers an excellent value.

Many of our customers have switched to the 4300 after years of using other products, and they have all made the same discovery: Why spend significantly more when you can get the same performance for a fraction of the price?

The LaserSource has all the features you would expect from a laser driver, such as safety interlock, ESD protection, and hardware limit circuits for current and voltage. Dual range allows this instrument to operate at half-scale for improved resolution.

In addition, the LaserSource has unique features not found on competing products including optically isolated modulation and photodiode inputs, programmable PD bias, and a constant voltage control mode.

  • 100 mA, 500 mA, and 2,000 mA models available
  • High stability / low noise
  • High accuracy
  • Constant current, constant power and constant voltage operating modes
  • Large, clear VFD display easily viewable with laser goggles
  • Advanced laser diode protection
  • USB computer interface
  • Command set compatibility with Newport and ILX controllers
Model Current Voltage Accuracy Noise BW QCW
4201-DR 100 mA 10 V 0.025 % + 0.03 mA < 1 µA 325 kHz No
4205-DR 500 mA 10 V 0.025 % + 0.12 mA < 1.5 µA 325 kHz No
4220-DR 2 A 5 V 0.025% + 0.5 mA < 15 µA 150 kHz No
4201-DR-Datasheet
4205-DR-Datasheet
4220-DR-Datasheet
