Flatpak Optical Isolators

Flatpak Optical Isolators

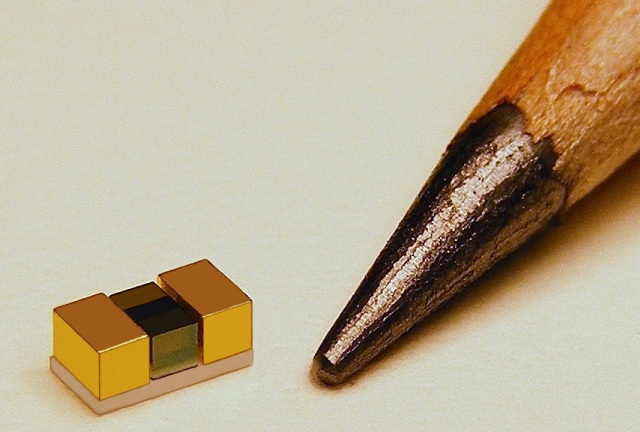

Isowave’s Flatpak series of Optical Isolators offers outstanding performance in an extremely compact design. The new Flatpak packaging provides the same features and performance as our standard round Miniature Optical Isolators. The Flatpak design also allows for surface mounting and use with automated material handling and processing methods. These robust Optical Isolators are available in several sizes and configurations to accommodate a wide variety of laser diode package geometries.


  • Semiconductor Laser Modules
  • Automated Pick and Place Assembly
  • Tunable Laser Modules
  • Small Form Factor Laser Modules


  • Low Insertion Loss
  • High Isolation
  • Available as Single Stage, Semi-Double Stage or Full Double Stage
  • Polarization Can be Determined by Customer


Specifications Single Stage Semi-Double Stage
Center Wavelength* 1310nm 1480nm 1550nm 1590nm 1310nm 1480nm 1550nm 1590nm

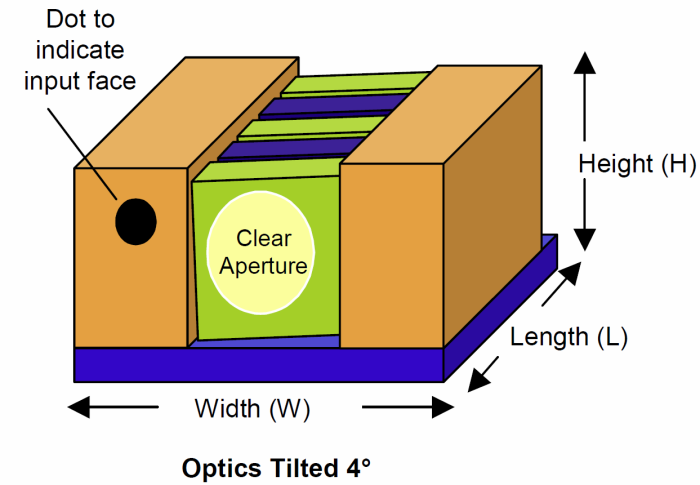

Clear Aperture 0.6mm – 1.6mm 0.6mm – 1.6mm
Physical Dimensions (W,L,H) W: 3mm & up, L: 1.6mm & up, W: 3mm & up, L: 2mm & up,
H: 2mm & up H: 2mm & up
Peak Isolation (typical) ≥ 38dB ≥ 55dB
Insertion Loss (typical) ≤ 0.25dB ≤ 0.5dB
Operating Temperature Range 0°C ~ + 55°C
Storage Temperature Range -40°C ~ + 85°C
Maximum Power Density 100W/cm2
Polarization Input/Output Can Be User Specified
*other wavelengths available upon request
