Analog Liquid Crystal Controller (B1010)

The B1010 is an analog Liquid Crystal Controller designed
to integrate with any single (standard) Meadowlark Optics LC device currently offered.

Independent voltage settings allow easy and repeatable
selection of two retardance values. Often, it is desirable to modulate between the two states. For example, switching between quarter‐wave and three quarter‐wave retardance changes linearly polarized light between left and
right circular. A manual toggle allows easy switching between two states. Banana jacks between the knobs allow for continuous voltage monitoring without interfering with LC device connections.

Liquid Crystal Digital Interface Controller (D5020)

The D5020 Liquid Crystal Digital Interface is the next generation in the evolution of Meadowlark Optics Liquid Crystal Controllers. The Digital Controller is designed for user functionality and productivity. The D5020 provides a “set and go” function that
allows the controller to run autonomously without a computer.

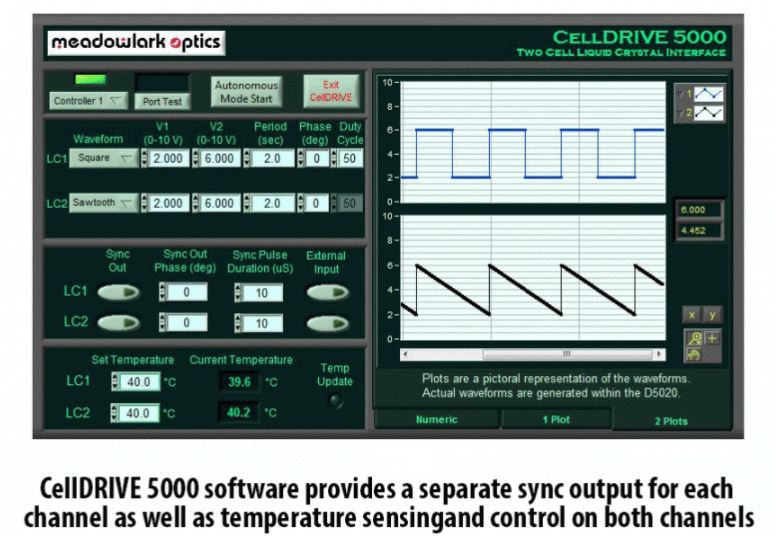

Controlling multiple Liquid Crystal cells has never been easier. CellDRIVE 5000 software provides a separate sync output for each channel as well as temperature sensing and control on both channels. The 2 kHz square wave output can be amplitude modulated with sinusoidal, square, triangle, sawtooth
and transient nematic effect waveforms.

Ferroelectric Liquid Crystal Controller (FCS01)

The FCS010 is a two‐channel liquid crystal controller specifically designed to drive our ferroelectric liquid crystal shutters and rotators. It has two short‐circuit protected output channels driven 180 degrees out of phase.

The pre‐configured controller waveforms are optimized for FLC devices. We can tailor the waveform to your specific needs based on application and purchased FLC device. The drive waveform is output through SMA connectors.

Analog LC Controller Specifications:
Output Voltage 0 to 20 VAC, RMS, maximum
Fundamental Drive Waveform 2 kHz AC square wave
External Modulation (input) None
Output Bias ± 10 mV DC
Power Requirements 12 VDC 200 mA or 9V battery
External power supply included
100‐240 VAC 50‐60 Hz, 0.3 A
International Plugs
Battery Life 1 hour (intended for convenience,
not as a primary power source)
External Dimensions (W x D x H) 3.3 x 6.0 x 2.2 in.
Weight < 1 lb.
CE Compliance Compliant
LC Digital Interface Specifications:
Fundamental Drive Waveform 2 kHz AC square wave
Modulation Amplitude 0 – 10 Vrms (20 Vrms option available)
Modulation Resolution 1 mV (0.155 mV using LabVIEW™ subroutines)
DC Offset < 5 mV
Communications Interface USB
LC Cell to Controller Connections SMA – SMB, 2 m cable length
CE Compliance Compliant
Dimensions(L x W x H) 5.50 x 5.25 x 1.63 in
Weight 1.8 lbs. (with cables)
Modulation Waveforms External modulation
Input (0 – 5 V)
Transient nematic effect
Temperature Control
(2 Channels)
Active heating/passive cooling
within ± 1˚C of nominal set point
Sync Output TTL, user specified timing
and phase
System Requirements Windows™ Vista, 7 or 8
Requires LabVIEW™ version 2010 or higher for use with LabVIEW™
instrument Library
Ferroelectric LC Controller Specifications:
Dimensions 5.3 in. W x 5.3 in. L x 2.0 in. H
13.5 cm W x 13.5 cm L x 5.1 cm H
Number of LC Channels Two, running identical programs
180˚ out of phase
Output Waveform Bipolar ± 15V peak voltage,
± 10V holding voltage
Amplitude Resolution 16‐bit; 1 mV voltage resolution
Internal Drive 1 to 10,000 Hz, 50% duty cycle,
frequency controlled by front‐panel
10‐turn knob

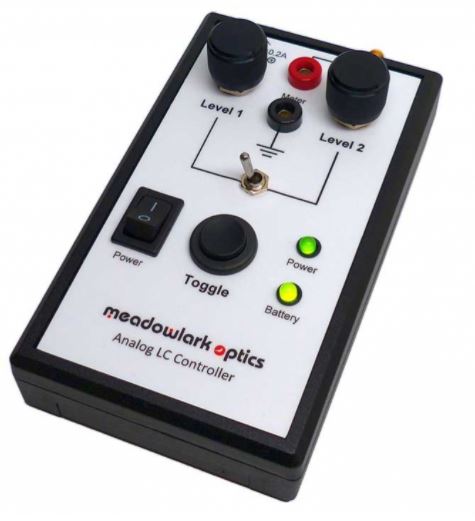

Analog Liquid Crystal Controller

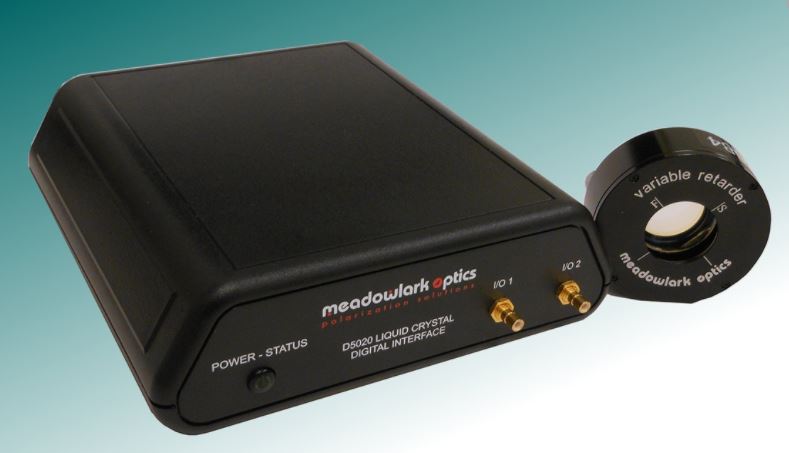

Liquid Crystal Digital Interface – D5020
Ferroelectric Liquid Crystal Controller
