Multi-instrument Mode

Run and combine multiple instruments with Multi-instrument Mode.

Liquid Instruments

Multi-instrument Mode – Transform the way you test

    • Run multiple instruments on one platform for a modern and efficient lab
    • Generate, view, and process signals simultaneously, from one device
    • Save space and reduce costs without compromising on specifications
    • Scale your hardware with your projects with advanced customisation tools



How many instruments can be run simultaneously?

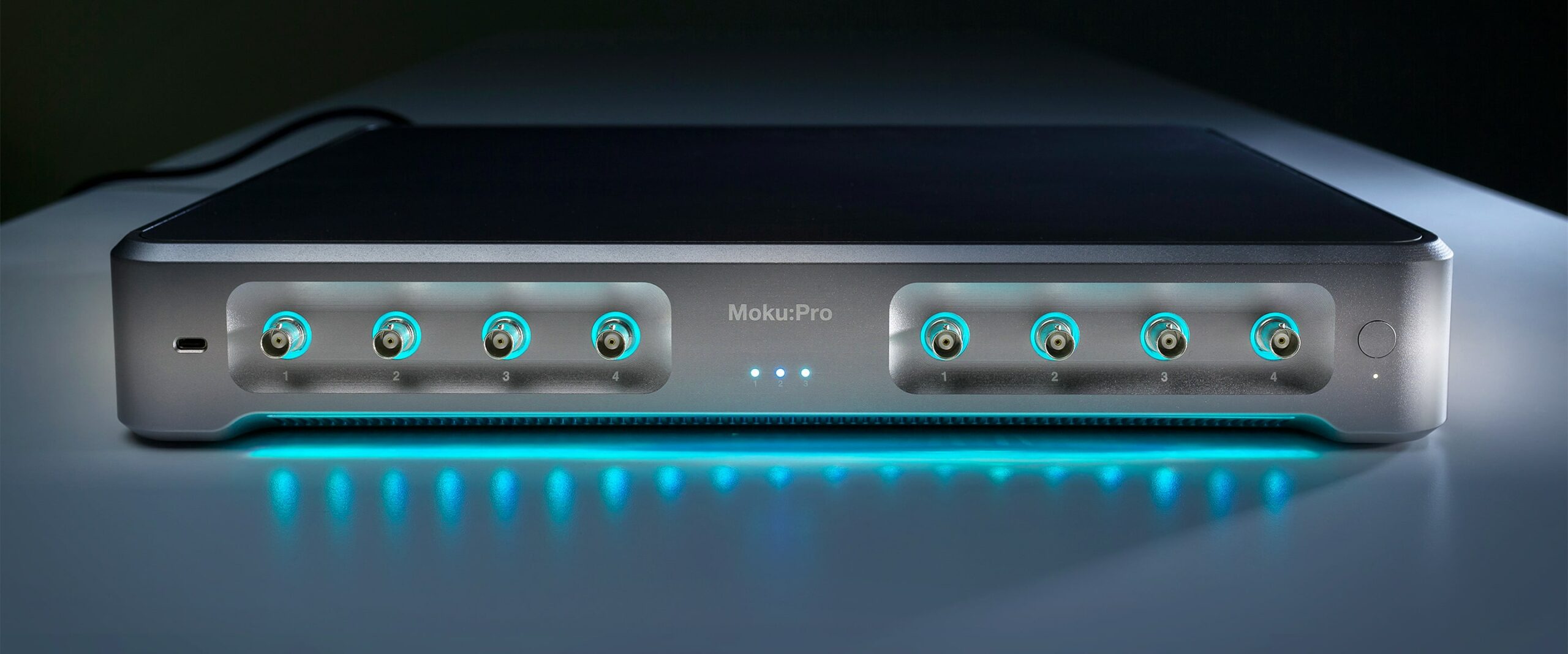

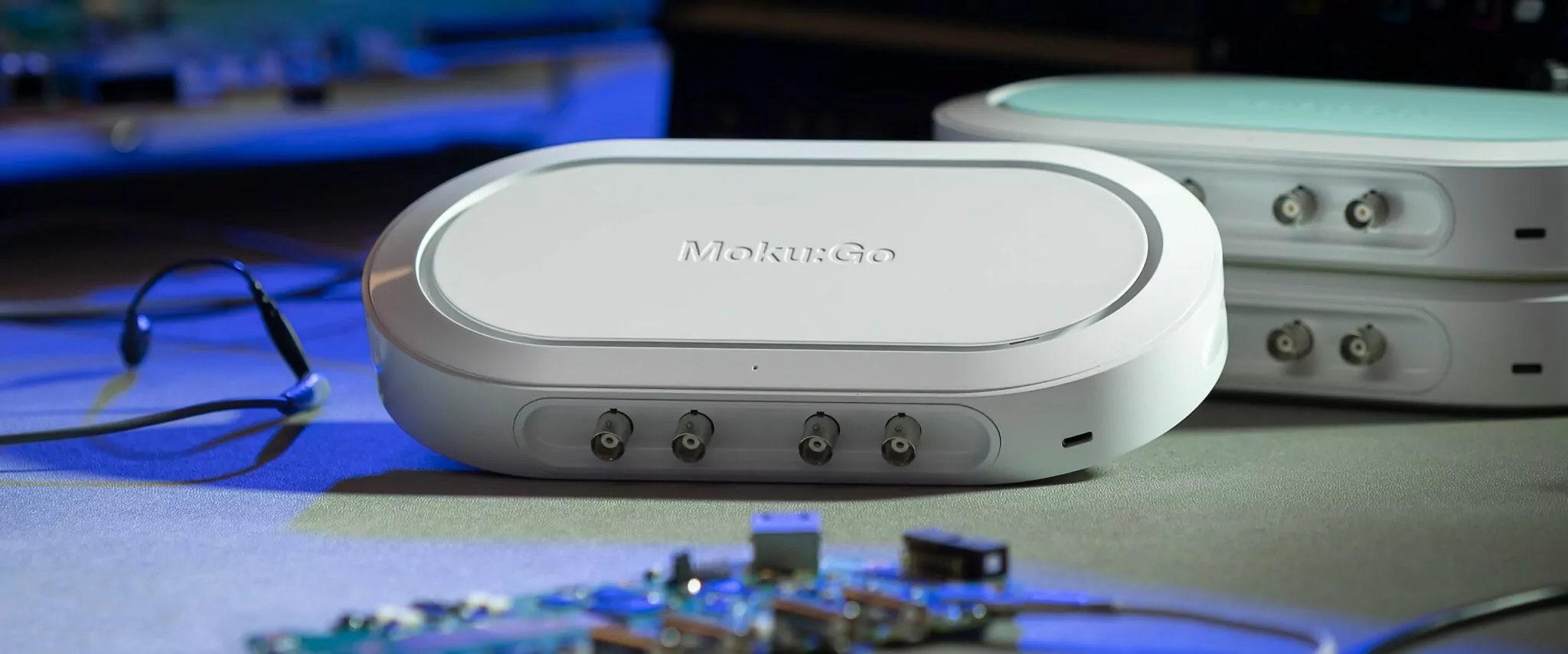

Moku:Pro users can deploy up to 4 instruments simultaneously in Multi-instrument Mode, while Moku:Go users can deploy 2 instruments simultaneously.



How does Multi-instrument Mode work?
Create a customised test system on a single piece of hardware
  • Build custom test configurations on the Moku’s FPGA
  • Chain instruments together to build sophisticated digital signal processing pipelines
  • Hot-swap instruments in and out without interrupting those running in tandem



Ultra-low Latency
  • Signals between instruments can be routed through Digital Signal Buses, enabling high data rates with ultra-low latency and no degradation of SNR, that typically would result from the analog-to-digital or digital-to-analog conversions in separate hardware modules or boxes



Fast setup times
  • All of the instruments are preconfigured to run together on the FPGA, so complex wiring or coding aren’t required



Combine with Moku Cloud Compile for ultimate customisation
  • Moku Cloud Compile offers the ability to deploy your custom code alongside instruments in the Moku suite and run them simultaneously
  • More information about Moku Cloud Compile can be found through this link



Examples of Purpose Built Systems

Running multiple instruments simultaneously whilst connecting their inputs/outputs allows users to build custom test configurations and sophisticated digital signal processing pipelines. This increases the potential of Moku products and allows for many more specific applications.

Below are some example of systems built using the Multi-instrument Mode:

Multi-Frequency Lock-in Amplifier:
  • Combine multiple Lock-in Amplifiers to provide multi-frequency and multi-harmonic demodulation
  • Suggested instrument combination: 3x Lock-in Amplifier, Oscilloscope



Closed Loop Controller:
  • Sub-µs input and output delay enables Moku:Pro to be used as a closed-loop controller even for high-speed applications. Make adjustments and see them reflected in real-time to the monitoring devices
  • Suggested instrument combination: PID Controller, Frequency Response Analyser, Oscilloscope, Spectrum Analyser



Generate and Control Complex Modulated Waveforms:
  • Modulate signals with arbitrary waveforms and easily vary the modulations in real-time. Cascaded modulations are also possible. View, measure, and control your output waveforms simultaneously
  • Suggested instrument combination: Arbitrary Waveform Generator, 2x Waveform Generator, Oscilloscope

Available on

Moku:Go, Moku:Pro

Moku:Go’s
FIR Filter Builder
Moku:Lab’s
FIR Filter Builder
Number of Instruments
2 4
Analog Inputs / Outputs
Two Analog Inputs
Two Analog Outputs
Four Analog Inputs
Four Analog Outputs
Deployable Instruments
Arbitrary Waveform Generator
Data Logger
Digital Filter Box
FIR Filter Builder
Frequency Response Analyser
Oscilloscope
PID Controller
Spectrum Analyser
Waveform Generator
Moku Cloud Compile
Arbitrary Waveform Generator
Moku Cloud Compile
Data Logger
Digital Filter Box
Frequency Response Analyser
Laser Lock Box
Lock-in Amplifier
Oscilloscope
Phasemeter
PID Controller
Spectrum Analyser
Waveform Generator
Multi-instrument Mode Datasheet - Moku:Go
Multi-instrument Mode Datasheet - Moku:Pro
