Large Beam Profiling System

LBPS Series

DataRay Logo

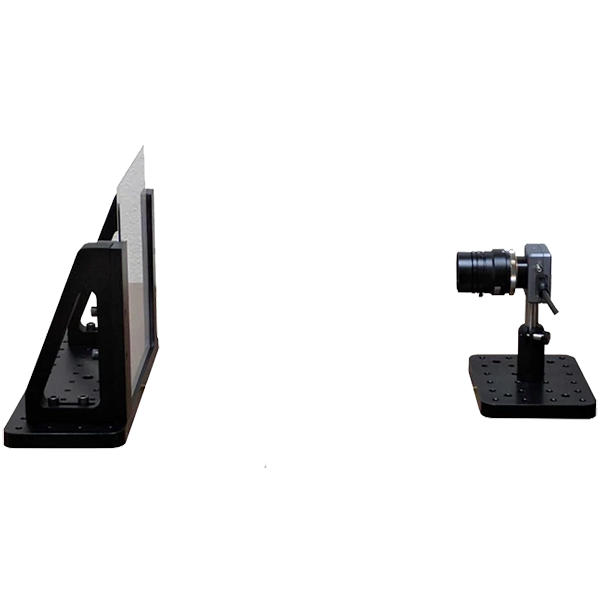

Large beam profiling system for analysis of beams to 200 mm image area

Includes WinCamD-LCM CMOS Beam Profiler, imaging lens, and transmissive screen assembly.

    • 355 to 1150 nm
    • Image plane (sensor): 4.2 MPixel, 2048 x 2048 pixels, 11.3 x 11.3 mm active area
    • 5.5 μm pixel size
    • Reimaging Lens: 12.5 mm focal length, f/1.4-f/16
    • Transmissive screen: 200 x 200 mm

v170 μm effective pixel size
