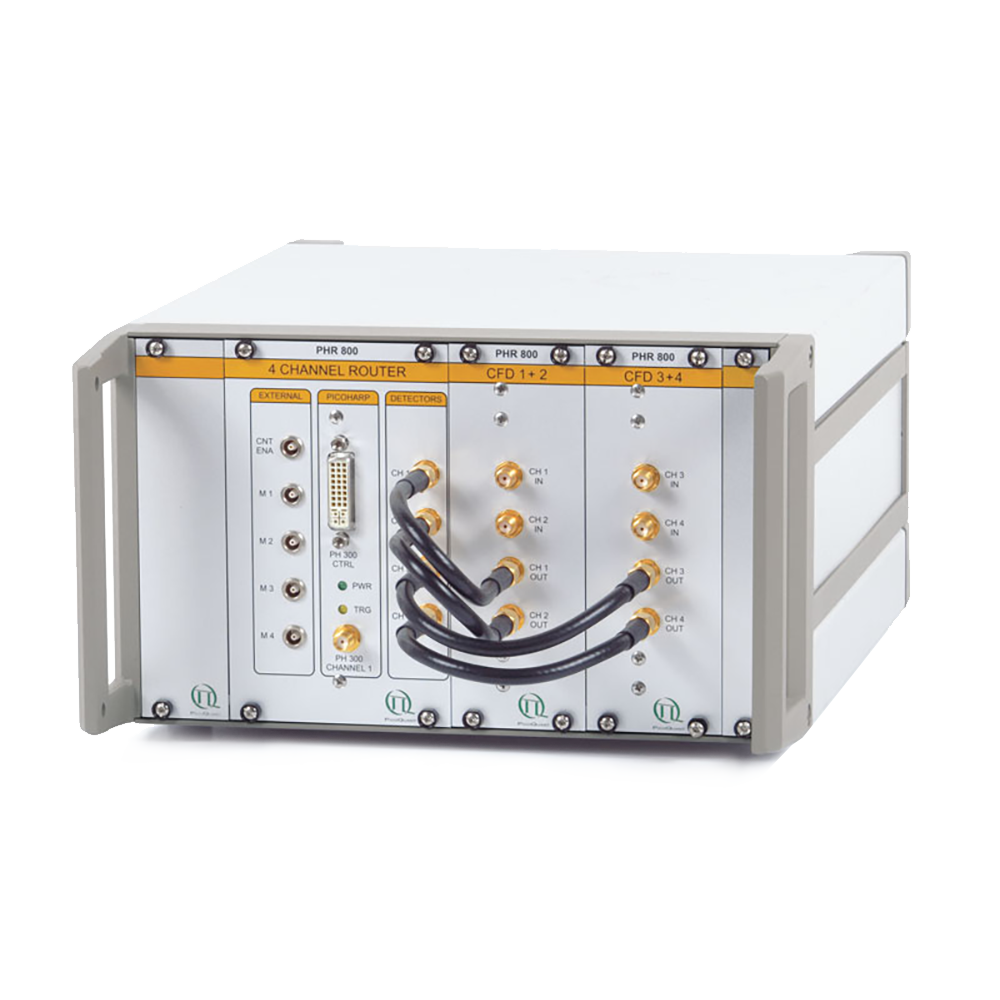

Universal 4-channel detector router for the PicoHarp 300

PHR 800

PicoQuant Logo

Universal 4-channel detector router for the PicoHarp 300

  • Allows simultaneous measurement of 4 detector signals
  • Adjustable input polarity and trigger threshold
  • Predefined settings for TTL or NIM signals provided by SPAD detectors
  • Adjustable input delay for each channel with 4 ps resolution
  • Optional Constant Fraction Discriminators for PMTs, Hybrid-PMTs and MCP-PMTs
  • Supports histogramming and TTTR measurement modes
  • 4 connectors for external synchronization (marker) signals in TTTR measurements
  • Fully supported by PicoHarp 300 and SymPhoTime 64 software


The four channel router PHR 800 is an accessory for the PicoHarp 300 Time-Correlated Single Photon Counting (TCSPC) system (from hardware revision 2.0). Using the PHR 800, users can connect up to 4 (even different) single photon detectors to perform simultaneous multichannel time-resolved measurements. These can provide another valuable dimension of information, e.g. color and/or polarization as well as improved collection efficiency. This permits sophisticated and fast multidimensional fluorescence detection methods in the life sciences or in general sensitive analytics.

Histogramming and time-tagging support

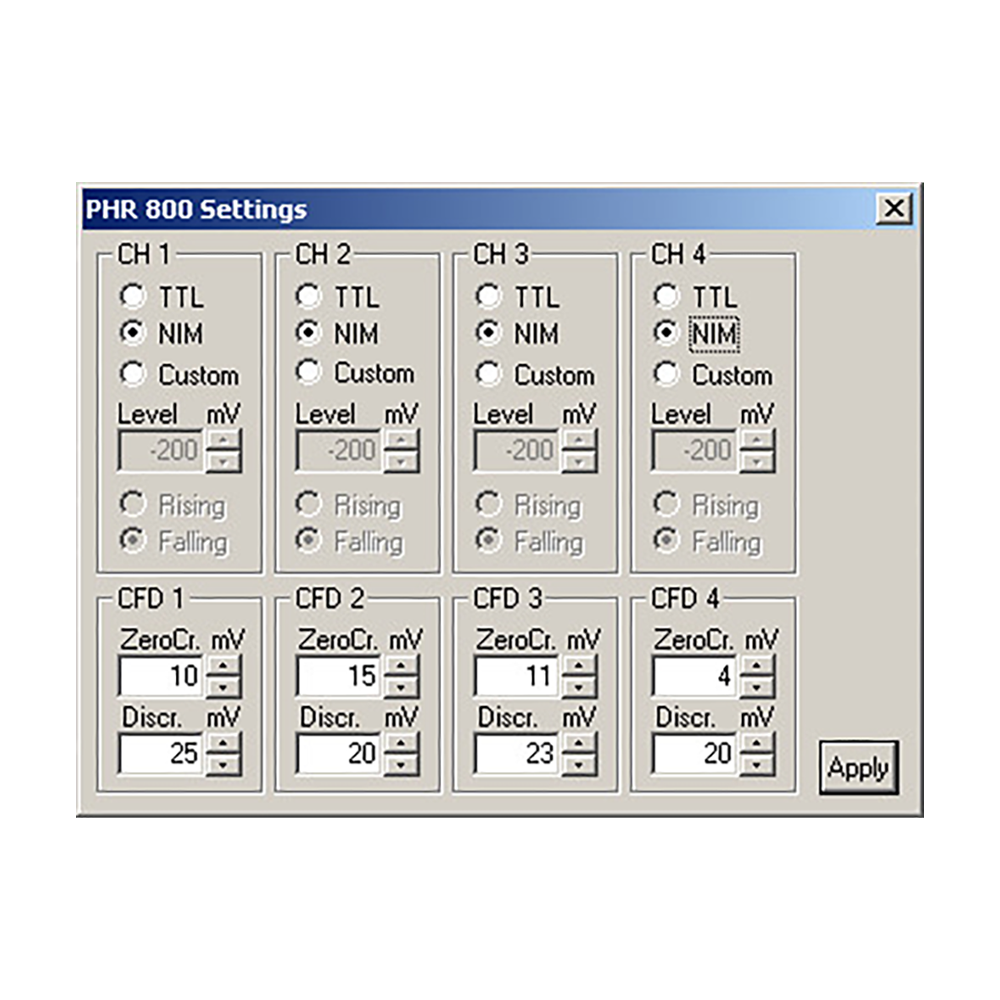

PHR 800 – configuration dialog windowThe 4-channel router supports both histogramming and Time-Tagged Time-resolved (TTTR) mode. The latter allows the recording of each individual photon with its picosecond timing and the detector channel it came from. This permits ultimate flexibility in data analysis e.g. for burst detection or Fluorescence Correlation Spectroscopy (FCS) combined with fluorescence lifetime information. Using two or more detectors and TTTR mode it is possible to perform cross correlations in FCS. Each router channel includes an internal adjustable delay with ±8 ns range at 4 ps resolution to tune for relative delays. Up to four external synchronization signals can also be connected to the frontpanel of the PHR 800. They appear as marker signals in TTTR data files and allow e.g. to synchronize the data acquisition with the movement of a scanner for Fluorescence Lifetime Imaging (FLIM).

Supports SPADs, PMTs, Hybrid-PMTs, MCP-PMTs,…
The settings of the PHR 800 can be adjusted through the software interface of the PicoHarp 300, the PicoHarp 300 programming library or the SymPhoTime 64 software. This allows selection of the input polarity and the trigger threshold, so that almost any detector signal can be used. Standards supported are TTL and NIM from commonly used SPAD detectors. Dependent on the chosen configuration, the PHR 800 can optionally contain Constant Fraction Discriminators (CFD), separate for all four inputs and also adjustable by the software. This supports detectors with fluctuating pulse heights such as Photomultiplier Tubes (PMT), Hybrid Photomultiplier and Multichannel Plate-Photomultiplier Tubes (MCP-PMT).

Detector Input
Impedance 50 Ohms
Trigger level -1.5 V to +2.5 V
Voltage range Actual trigger level ± 3V
Trigger edge Falling or rising
Pulse width > 15 ns
Dead time typ. 80 ns
Adjustable delay range for each channel ± 8 ns, resolution 4 ps
External Input
Count enable TTL, 3 V to 5 V, high active
Marker 0 – 3 TTL, 3 V to 5 V, high or low active
Constant Fraction Discrimator (CFD)
CFD level range 0 to -800 mV
CFD zero cross range 0 to 20 mV
Input impedance 50 Ohms
Output signal peak typ. 700 mV
Output signal pulse width typ. 30 ns
PicoHarp 300 control port DVI-I female
Input/output SMA female
Count enable and marker inputs Lemo ERN.00.250.CTL
Power supply
Line voltage 110/240 VAC, 50/60 Hz
Power Consumption max. 25 W
Dimensions 310 × 235 × 140 mm


All Information given here is reliable to our best knowledge. However, no responsibility is assumed for possible inaccuracies or omissions. Specifications and external appearances are subject to change without notice.
