635 nm EdgeBasic™ best-value long-pass edge filter

Semrock Logo

EdgeBasic filters offer an ideal combination of performance and value for applications including Raman spectroscopy and fluorescence imaging and measurements. They offer exceptional laser-line blocking and high transmission for Raman applications that do not require measuring the smallest possible Raman shifts and when cost is an issue.

Note on spectral plots:
In the past, each shipment has included a spectral plot for every filter and every lot code in the shipment. In an effort to be more eco-friendly, we will no longer be including these plots with each shipment. If you require spectral plot data, please see here for more information.

Optical Specifications
Transmission BandTavg > 93% 660 – 1200 nm
Laser Wavelength635 nm
Laser Wavelength, high642 nm
Laser Wavelength, low632.8 nm
Edge Wavelength655 nm
Blocking BandODabs > 6 506.24 – 642 nm
ODavg > 5 270 – 506.24 nm
Transition Width16.1 nm
380 cm-1


General Specifications
Angle of Incidence0 ± 2 °
Cone Half-angle5 °
Filter Effective Index1.77 Understanding 'Effective Index of Refraction' neff
Optical Damage RatingNot tested


Physical Specifications (for standard parts - please contact us for custom sizes)
ShapeRound
Size23.3 x 2.0 mm
25 x 3.5 mm
Transverse Dimensions, Diameter25 mm
Transverse Tolerance, Mounted+ 0.0 / - 0.1 mm
Filter Thickness, Mounted3.5 mm
Filter Thickness Tolerance, Mounted± 0.1 mm
Clear Aperture≥ 22 mm
Surface Quality (Scratch-Dig)60-40
Substrate Thickness2.0 mm
Substrate TypeLow-autofluorescence optical quality glass
OrientationArrow on ring indicates preferred direction of propagation of light


BLP01-635R-23.3-D

  • Unmounted
  • Size: 23.3 x 2.0 mm

BLP01-635R-25

  • Mounted
  • Size: 25 x 3.5 mm

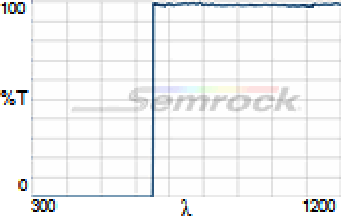

Transmission

Loading chart data...

Optical Density

Loading chart data...

Semrock Spectral Plot Info
BLP01-635R_Spectrum
