484/561 nm BrightLine® dual-band bandpass filter

Semrock Logo

Individual multiband fluorescence bandpass filters that utilize Semrock’s patented single-substrate construction. These filters have extremely high transmission, steep and well-defined edges, and outstanding blocking between the passbands. All thin-film, hard-coated construction for unsurpassed performance and reliability.

BrightLine emitter for CFP/YFP imaging channels optimized for Lumencor CELESTA light engine® utilizing 445 nm & 518 nm wavelengths.

Note on spectral plots:
In the past, each shipment has included a spectral plot for every filter and every lot code in the shipment. In an effort to be more eco-friendly, we will no longer be including these plots with each shipment. If you require spectral plot data, please see here for more information.

Optical Specifications
Transmission BandBand 1: Tavg > 90% 473 – 495 nm
Band 2: Tavg > 90% 546 – 576 nm
Transmission WavelengthBand 1: 484 nm
Band 2: 561 nm
FWHM BandwidthBand 1: 25.9 nm
Band 2: 38.9 nm
Blocking BandOD > 3.5 466.5 nm
OD > 3.5 502 nm
OD > 3.5 538.5 nm
ODavg > 2 1080 – 1100 nm
ODavg > 4 200 – 275 nm (Design specification – measurements are noise-floor limited)
ODavg > 4 275 – 428 nm
ODavg > 5 595 – 1080 nm
ODavg > 8 428 – 459 nm (Design specification – measurements are noise-floor limited)
ODavg > 8 510 – 530 nm (Design specification – measurements are noise-floor limited)


General Specifications
Angle of Incidence0 ± 5 °
Cone Half-angle7 °
Filter Effective Index1.87 Understanding 'Effective Index of Refraction' neff
Optical Damage RatingTesting has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm²) for over 500 hrs.


Physical Specifications (for standard parts - please contact us for custom sizes)
ShapeRound
Size25 x 3.5 mm
23.3 x 2.0 mm
Transverse Dimensions, Diameter25 mm
Transverse Tolerance, Mounted+ 0.0 / - 0.1 mm
Filter Thickness, Mounted3.5 mm
Filter Thickness Tolerance, Mounted± 0.1 mm
Clear Aperture≥ 22 mm
Surface Quality (Scratch-Dig)60-40
Substrate Thickness2.0 mm
Substrate TypeLow-autofluorescence optical quality glass
OrientationArrow on ring indicates preferred direction of propagation of light


FF01-484/561-23.3-D

  • Unmounted
  • Size: 23.3 x 2.0 mm

FF01-484/561-25

  • Mounted
  • Size: 25 x 3.5 mm

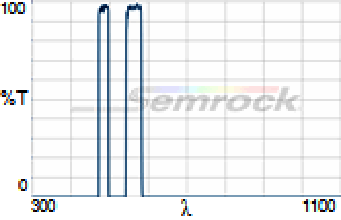

Transmission

Loading chart data...

Optical Density

Loading chart data...

Semrock Spectral Plot Info
FF01-484_561_Spectrum
