378/474/554/635 nm BrightLine® quad-band bandpass filter

Semrock Logo

Individual multiband fluorescence bandpass filters that utilize Semrock’s patented single-substrate construction. These filters have extremely high transmission, steep and well-defined edges, and outstanding blocking between the passbands. All thin-film, hard-coated construction for unsurpassed performance and reliability.

Note on spectral plots:
In the past, each shipment has included a spectral plot for every filter and every lot code in the shipment. In an effort to be more eco-friendly, we will no longer be including these plots with each shipment. If you require spectral plot data, please see here for more information.

Optical Specifications
Transmission BandBand 1: Tavg > 85% 352 – 404 nm
Band 2: Tavg > 93% 461 – 487.5 nm
Band 3: Tavg > 93% 543 – 566 nm
Band 4: Tavg > 93% 626 – 644 nm
Transmission WavelengthBand 1: 377.5 nm
Band 2: 474.1 nm
Band 3: 554.5 nm
Band 4: 635 nm
FWHM BandwidthBand 4: 22.9 nm
Band 3: 27.6 nm
Band 2: 30.1 nm
Band 1: 57.3 nm
Blocking BandOD > 3.5 409 nm
OD > 3.5 455.5 nm
OD > 3.5 493.5 nm
OD > 3.5 536.5 nm
OD > 3.5 573 nm
OD > 3.5 618.5 nm
OD > 3.5 651.8 nm
ODavg > 2 925 – 1100 nm
ODavg > 4 850 – 925 nm
ODavg > 5 200 – 300 nm
ODavg > 6 300 – 341.5 nm
ODavg > 8 414 – 450 nm (Design specification – measurements are noise-floor limited)
ODavg > 8 499.5 – 530 nm (Design specification – measurements are noise-floor limited)
ODavg > 8 580 – 611 nm (Design specification – measurements are noise-floor limited)
ODavg > 8 661 – 850 nm (Design specification – measurements are noise-floor limited)


General Specifications
Angle of Incidence0 ± 5 °
Cone Half-angle7 °
Filter Effective Index1.77 Understanding 'Effective Index of Refraction' neff
Optical Damage RatingTesting has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm²) for over 500 hrs.


Physical Specifications (for standard parts - please contact us for custom sizes)
ShapeRound
Size25 x 5.0 mm
21.8 x 2.0 mm
Transverse Dimensions, Diameter25 mm
Transverse Tolerance, Mounted+ 0.0 / - 0.1 mm
Filter Thickness, Mounted5.0 mm
Filter Thickness Tolerance, Mounted± 0.1 mm
Clear Aperture≥ 21 mm
Surface Quality (Scratch-Dig)60-40
Substrate Thickness2.0 mm
Substrate TypeLow-autofluorescence optical quality glass
OrientationArrow on ring indicates preferred direction of propagation of light


FF01-378/474/554/635-21.8-D

  • Unmounted
  • Size: 21.8 x 2.0 mm

FF01-378/474/554/635-25

  • Mounted
  • Size: 25 x 5.0 mm

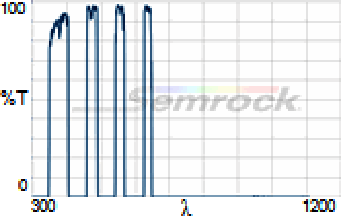

Transmission
