1075 nm MaxLine® laser clean-up filter

Semrock Logo

MaxLine laser-line filters transmit greater than 90% of the light at a precisely defined laser line, while offering incredibly steep edges to eliminate optical noise from non-lasing (plasma) lines and spontaneous emission.

** Limited quantities of LL01-1075 parts remain available. Final availability and delivery will be confirmed upon receipt of order **

Note on spectral plots:
In the past, each shipment has included a spectral plot for every filter and every lot code in the shipment. In an effort to be more eco-friendly, we will no longer be including these plots with each shipment. If you require spectral plot data, please see here for more information.

Optical Specifications
Transmission BandTabs > 90% 1075 nm
Laser Wavelength1075 nm
Transmission Wavelength1075 nm
FWHM Bandwidth4.1 nm (typical)
7.5 nm (maximum)
Blocking BandODabs > 5 1058.8 – 1064.2 nm
ODabs > 5 1085.8 – 1443.6 nm
ODabs > 6 1091.2 – 1182.5 nm
ODabs > 6 989 – 1058.8 nm


General Specifications
Angle of Incidence0 ± 2 °
Cone Half-angle0.5 °
Filter Effective Index2.02 Understanding 'Effective Index of Refraction' neff
Optical Damage Rating0.1 J/cm² @ 532 nm (10 ns pulse width)


Physical Specifications (for standard parts - please contact us for custom sizes)
Mounted / UnmountedMounted
ShapeRound
Size12.5 x 3.5 mm
25 x 3.5 mm
Transverse Tolerance, Mounted+ 0.0 / - 0.1 mm
Filter Thickness, Mounted3.5 mm
Filter Thickness Tolerance, Mounted± 0.1 mm
Clear Aperture≥ 10 mm
≥ 22 mm
Surface Quality (Scratch-Dig)60-40
Substrate Thickness2.0 mm
Substrate TypeLow-autofluorescence optical quality glass
OrientationArrow on ring indicates preferred direction of propagation of light


LL01-1075-12.5

  • Size: 12.5 x 3.5 mm
  • Transverse Dimensions, Diameter: 12.5 mm

LL01-1075-25

  • Size: 25 x 3.5 mm
  • Transverse Dimensions, Diameter: 25 mm

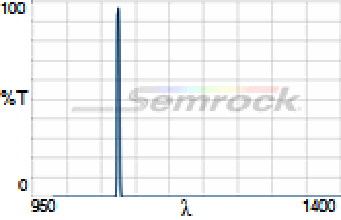

Transmission

Loading chart data...

Optical Density

Loading chart data...

Semrock Spectral Plot Info
LL01-1075_Spectrum
