Scan and CUBE Series

There are 5 varying series for the Sanlab scanners, for more information or guidance please contact our experts.

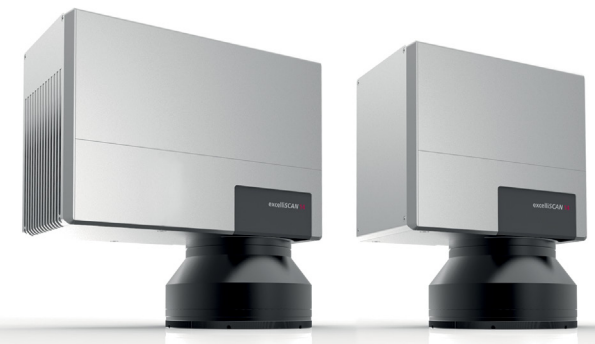

The Premium Scanning Standard

SCANLAB’s excelliSCAN scan head is the high-end standard that meets even the most challenging demands. With the novel galvo control named ‘SCANahead control’ and the field-proven dynAXISse galvanometers equipped with digital encoders, excelliSCAN allows its user to achieve previously unreachable levels of dynamic performance and precision. This translates to significant gains in productivity and process accuracy.

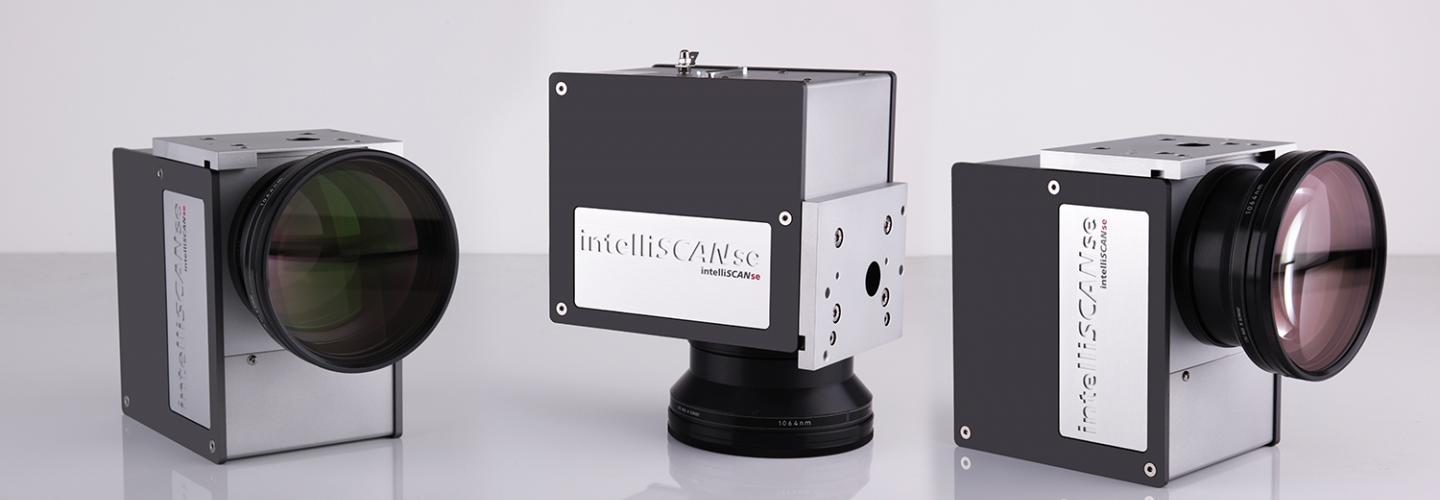

Premium Scan Heads

SCANLAB’s intelliSCAN scan heads stand out with variant diversity and high dynamics enabling deflecting and positioning of laser beams in the working plane. The intelliSCAN series allows versatile and flexible usage. It is designed for tasks with very high scan requirements across a broad variety of application areas.

Compact and Versatile

SCANLAB‘s SCANcube series are characterized by their remarkably compact construction. In addition to its robust housing, the SCANcube series offers an attractive price/performance ratio, making it the best choice for your standard applications.

The SCANcube III series impresses with further improved dynamics and precision.

With application-specific tunings, improved linearity and optional read-back functions, the SCANcube IV significantly expands the performance spectrum of the SCANcube series.

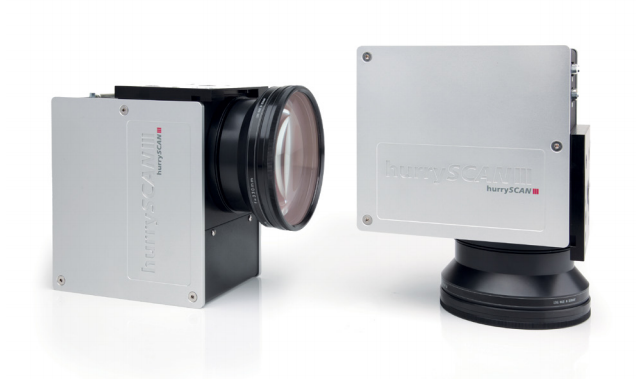

SCANLAB’s Universal Scanners

hurrySCAN scan heads offer compact and versatile high performance – providing flexible usability in nearly all industrial laser materials-processing applications. Moreover, hurrySCAN scan systems are especially cost-efficient.

These scan heads are available in various levels of dynamics and with apertures from 7 mm to 30 mm, to meet practically every customer need.

hurrySCAN systems with small apertures deliver exceptional dynamics with high precision – allowing write speeds up to 1,000 CPS. Scan heads with larger apertures are designed for high speeds at laser powers up to the multi-kilowatt range and offer small spot sizes.

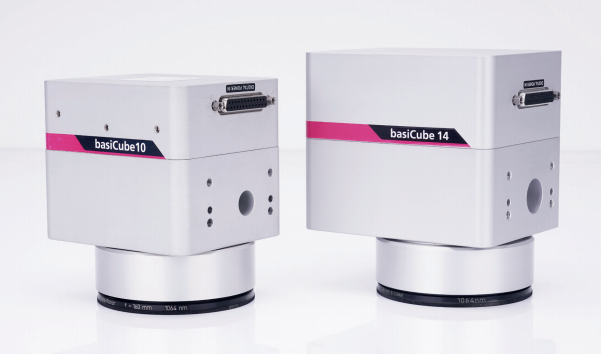

Beginner’s Scan Head

basiCube is a scan head specifically designed for laser marking and ‘processing on the fly’ applications. Its extreme compactness and ease of integration make it well-suited for installation in production lines.

Model excelliSCAN intelliSCAN SCANcube hurrySCAN basiCube
Aperture Size 14mm 10/14/20/30mm 7/8.5/10/14mm 10/14mm 10/14mm
Tracking Error 0ms 0.11/0.15/0.32/0.55ms 0.14/0.16/0.12/0.30/0.15ms 0.12/0.18ms 0.14/0.18ms
Marking Speeds <4ms 3.5/2.0/1.0/0.7ms 2.5/2.0/3.0/1.0ms 3.0/2.0ms 2.5/2.0ms



excelliSCAN Datasheet
intelliSCAN Datasheet
SCANcube Datasheet
hurrySCAN
BasiCube
