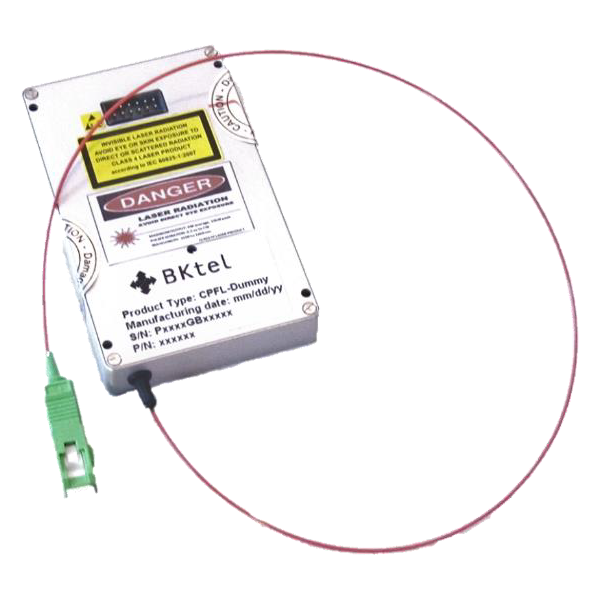

Ultra Compact and Light Weight Fibre Laser Module at 1.5 µm

Applications

Features

Model	CPFL2	CPFL-1.5a	CPFL-1.5t	CPFL-1.5at
Center Wavelength	1530 – 1564 nm	1540 – 1560 nm
Wavelength Drift	0.1 nm/°C
Laser Peak power	Up to 5 kW
Laser Output Power, average	Up to 1 W		Up to 150 mW	Up to 1 W
Pulse Width	0.2 – 5 ns	0.4 – 50 ns		0.2 – 5 ns
Pulse Energy	Up to 25 μJ	Up to 80 μJ	~5 μJ	Up to 80 μJ
Repetition Rate	5 kHz to MHz	10 kHz to MHz	5 kHz to MHz	10 kHz to MHz
Pulse Timing	External trigger, TTL / LVDS
Mechanical Dimensions	50 x 40 x 15 mm	80 x 50 x 12 mm	70 x 50 x 15 mm	80 x 70 x 15 mm
Power Supply Voltage	+3.3 / +5 VDC	+5 / +12 / +24 VDC/td>
Polarisation	Random	Random / Linear
Operating Case Temperature	-40 – +65 °C
Output Fibre length	30 cm
Output Beam Quality	Singlemode
Output Termination	Collimator, FC/APC
Power Consumption	17 W		<10 W	<20 W
Communication Interface	RS-232 / I2C	RS-232 / TTL
