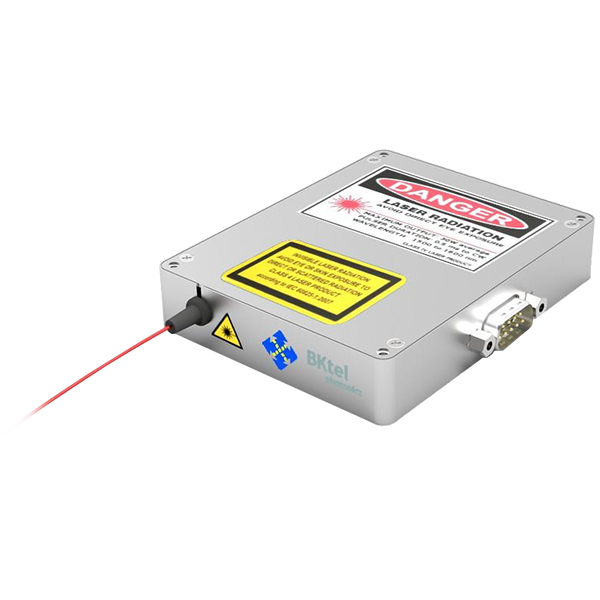

Low Relative Intensity Noise Laser

LRL

BKTel Logo

Low Relative Intensity Noise Laser.



Applications

  • Wind measurement, pollution detection
  • Long Range Finding, Coherent detection
  • LIDAR, LIDAR-DIAL

Features

  • Laser Line width 10 kHz
  • Low RIN noise
  • High Stability

Custom variants are available upon request.

Centre Wavelength

1530 – 1564 nm

Wavelength Drift

0.1 pm/°C

Laser Output POwer

15 dBm

Laser Linewidth

10 kHz

Polarisation

Random / Linear

Mechanical Dimensions

100 x 80 x 19 mm

Operating Case Temperature

0 – +70 °C

Output Fibre Length

30 cm

Output Termination

SC/APC, FC/APC, others

Power Supply Voltage

+12 VDC

Power Consumption

<5 W

Communication Interface

RS-232

MLRL-Datasheet
