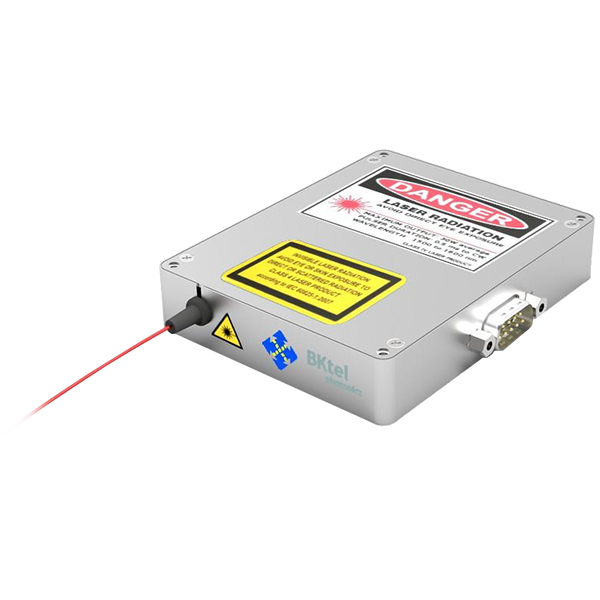

Low Relative Intensity Noise Laser

Related products

Low Relative Intensity Noise Laser

LRL

BKTel Logo
Add to Quote
Ask the Expert

Low Relative Intensity Noise Laser.



Applications

  • Wind measurement, pollution detection
  • Long Range Finding, Coherent detection
  • LIDAR, LIDAR-DIAL

Features

  • Laser Line width 10 kHz
  • Low RIN noise
  • High Stability

Custom variants are available upon request.

Centre Wavelength

1530 – 1564 nm
Wavelength Drift

0.1 pm/°C
Laser Output POwer

15 dBm
Laser Linewidth

10 kHz
Polarisation

Random / Linear
Mechanical Dimensions

100 x 80 x 19 mm
Operating Case Temperature

0 – +70 °C
Output Fibre Length

30 cm
Output Termination

SC/APC, FC/APC, others
Power Supply Voltage

+12 VDC
Power Consumption

<5 W
Communication Interface

RS-232
MLRL-Datasheet
