1″ CMOS THz Beam Profiler

WinCamD-THz

DataRay Logo
Add to Quote
Ask the Expert

Compact, Affordable, High-resolution 3 to 20 THz Multispectral Imaging
Port-powered USB 3.0

Features

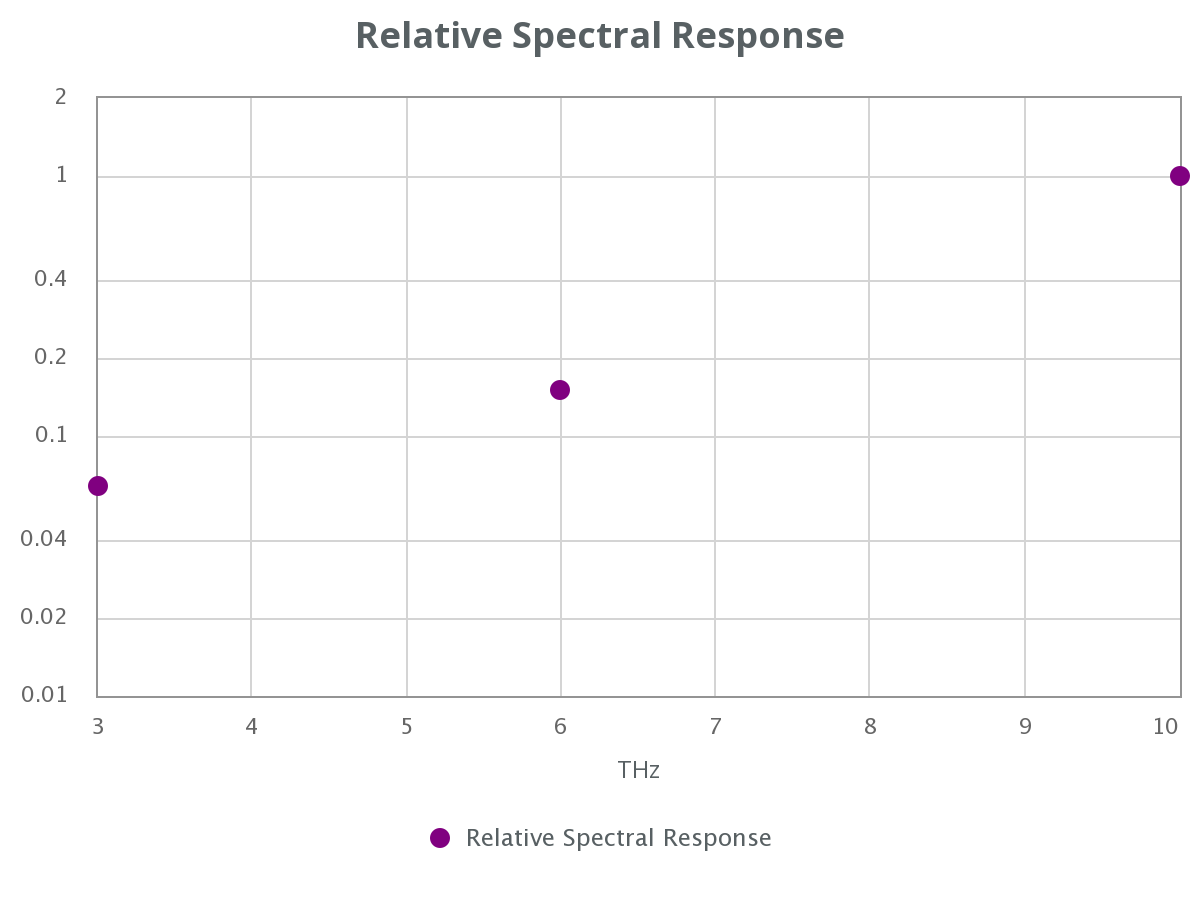

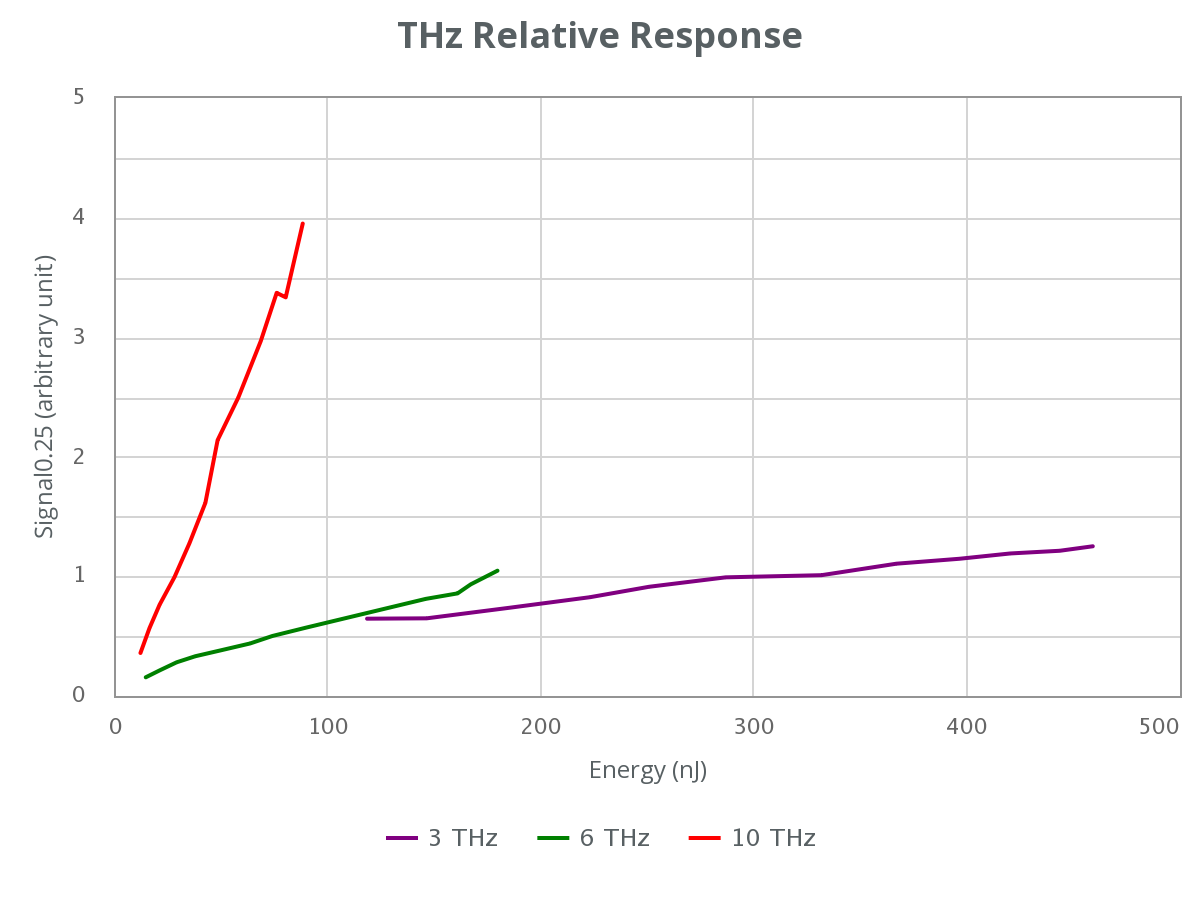

  • 3 to 20 THz (15 to 100 µm) plus 350 to 1150 nm
  • 2048 x 2048 pixels, 11.3 x 11.3 mm active area
  • 5.5 µm pixels
  • 12 fps @ 2048×2048 to 60 fps @ 512×512
  • Port-powered, USB 3.0; flexible 3 m cable

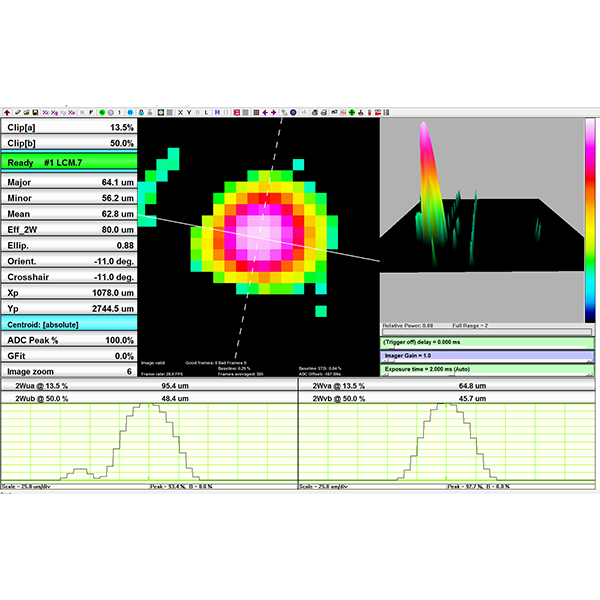

  • HyperCal™ – Dynamic noise and baseline correction software
  • Real-time non-linearity correction
  • Global electronic shutter, 85 µs to 2 s
  • TTL, optical and auto-trigger options
  • 12-bit ADC
  • Parallel capture on multiple cameras
  • Field-replaceable image sensors
  • Relative power level display



Applications

  • THz laser profiling/alignment
  • Non-linear spectroscopy
  • Medical & security inspection/QA of opaque objects
  • Field servicing of THz lasers & laser-based systems



PLEASE NOTE: This product requires 64-bit Windows 7, 8/8.1, or 10

Pixel size‚ H x V, count 5.5 x 5.5 µm pixels, 2048 x 2048, 4.2 MPixel
Sensor image area 11.3 x 11.3 mm
Shutter type Global
Frame rate ≥60 Hz @ 512 x 512; ≥30 Hz @ 1024 x 1024; ≥ 12 Hz @ 2048 x 2048

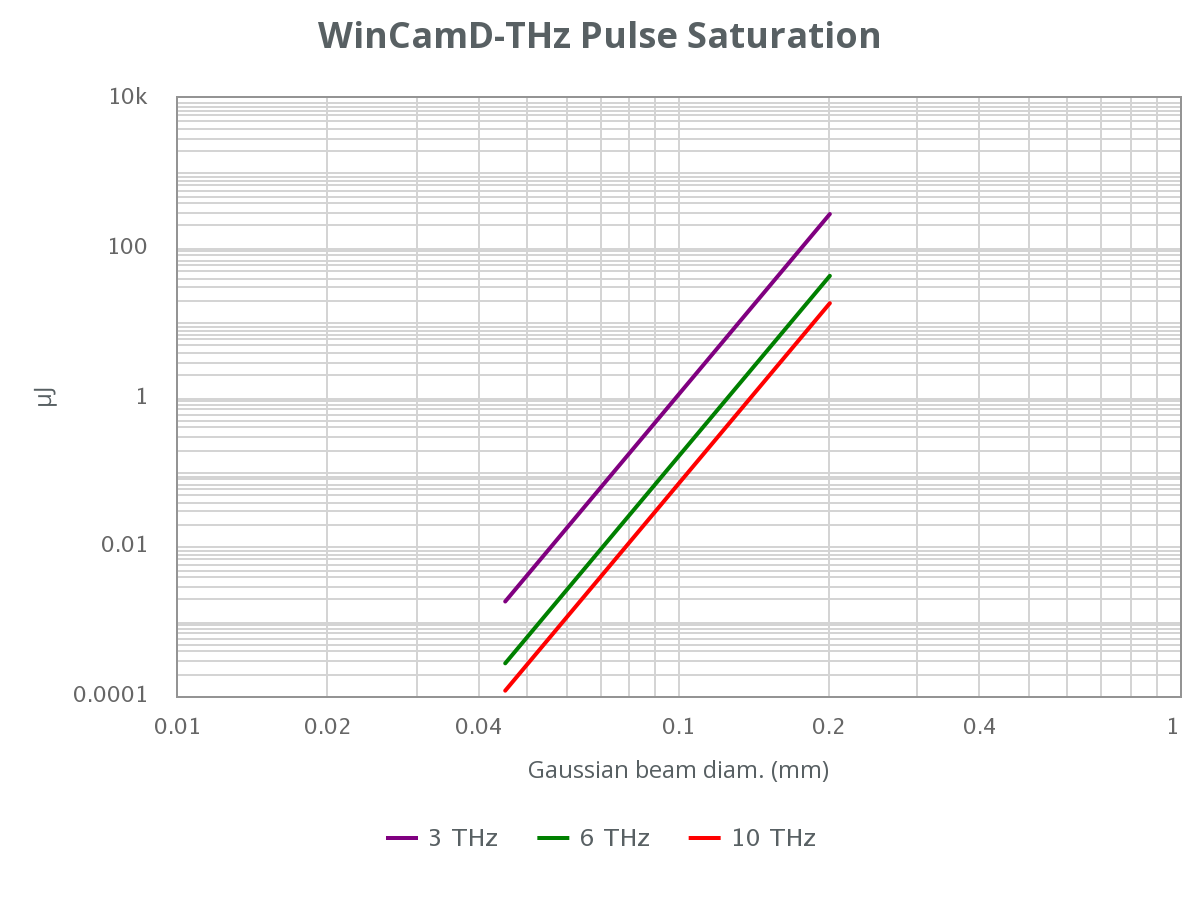

Max “every pulse” PRR ≥12.5 Hz
Single pulse capture max PRR USB 3.0: 12.6 kHz
USB 2.0: 6.3 kHz
Signal to RMS noise >500:1
Electronic shutter 25,000:1, 85 µs to 2s on USB 3.0
12,500:1, 158 µs to 2s on USB 2.0
ADC 12 bit
Interface USB 3.0 Port-powered
WinCamD-THz
