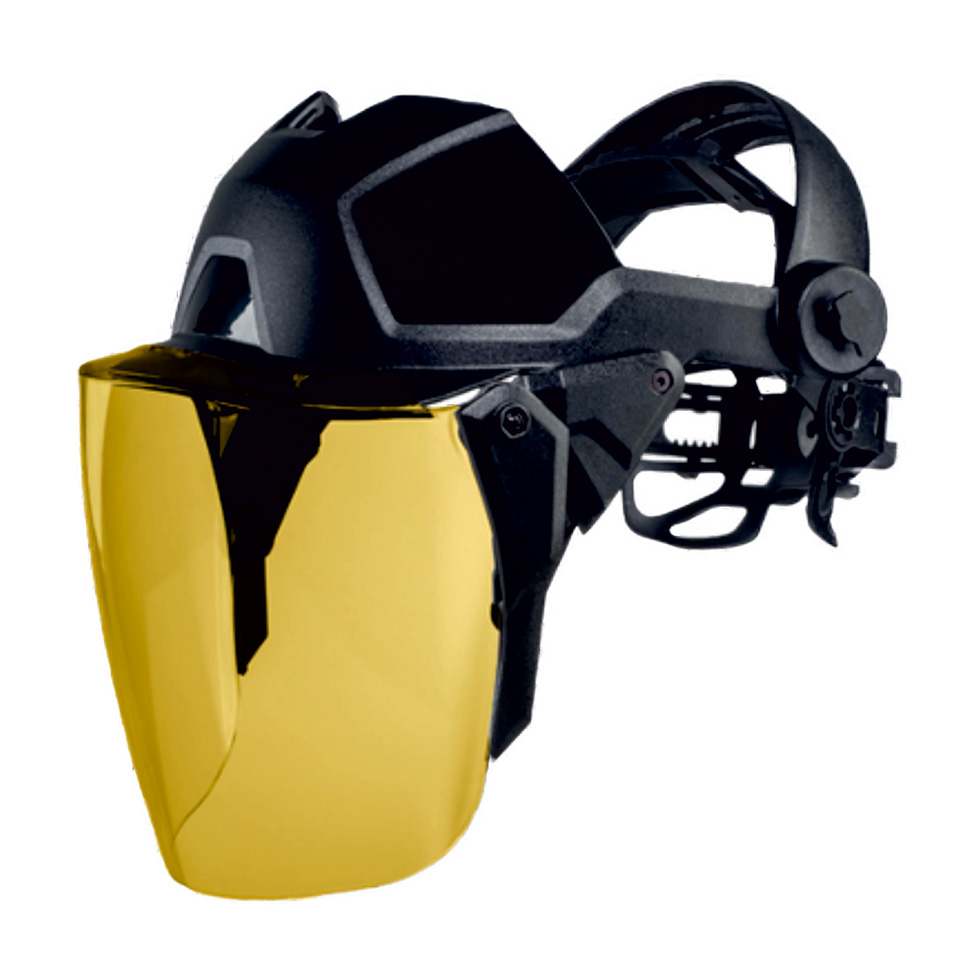

The safe and comfortable complete solution for eyes and face during hand-held laser welding. The face shield (FS1) offers certified laser protection in accordance with EN 207.
The face shield sets new standards in terms of wearing comfort. The total weight is only 386 g. The system is perfectly balanced thanks to an innovative folding mechanism with spring-loaded coupling rods. The height and width-adjustable headrest with the uvex spiderneck system perfectly rounds off the ergonomic support.
| Wavelength (nm) | Optical Density (OD) | Operating Mode / Tested Protection Level |
|---|---|---|
| 185 – 315 | (OD10+) | D LB10 + IR LB4 + M LB6Y |
| >315 – 466 | (OD8+) | D LB5 + IR LB8 + M LB8Y |
| 800 – <880 | (OD6+) | DIRM LB6 |
| 880 – 1070 | (OD10+) | D LB6 + IR LB8 + M LB10 |
| >1070 – 1080 | (OD8+) | D LB6 + IRM LB8 |
| >1080 – 1087 | (OD7+) | D LB6 + IRM LB7 |
| >1087 – 1100 | (OD6+) | DIRM LB6 |
| 5250 – 14000 | (OD4+) | DI LB4 + R LB3Y |
| Component | Specification |
|---|---|
| Coating | Front side anti-scratch / rear side anti-fog |
| Filter | P1P18 |
| Filter Colour | Gold |
| Filter Material | Plastic |
| Filter Technology | Absorption filter |
| Filter Thickness | ca. 2mm |
| Frame | FS1 |
| Properties | Lightweight, M-protection rating |
| Protection Class / Norm | EN 166, EN 207 full protection |
| Protection Range | Infrared, near infrared, ultraviolet |
| VLT (approx.) | 47% |
| Visual Brightness | Very good |
| Colour Recognition | Good |
