405/488/561/635/800 nm lasers BrightLine® multi-edge multiphoton super-resolution / TIRF dichroic beamsplitter
405/488/561/635/800 nm lasers BrightLine® multi-edge multiphoton super-resolution / TIRF dichroic beamsplitter - Image 2

Related products

405/488/561/635/800 nm lasers BrightLine® multi-edge multiphoton super-resolution / TIRF dichroic beamsplitter

Semrock Logo
Add to Quote
Ask the Expert
  • Laser Dichroic Beamsplitter with edges at 420 nm, 501 nm, 577 nm, 662 nm & 735 nm
  • Rabs > 94% 400 – 410 nm, 483 – 493 nm, 559 – 563 nm & 635 – 647 nm
  • Ravg > 94% 800 – 1050 nm
  • Tavg > 92% 425 – 470 nm, 508 – 540 nm, 583 – 615 nm & 671 – 725 nm
  • Flatness / RWE: Super-resolution / TIRF

Optical Specifications
Transmission BandBand 1: Tavg > 92% 425 – 470 nm
Band 2: Tavg > 92% 508 – 540 nm
Band 3: Tavg > 92% 583 – 615 nm
Band 4: Tavg > 92% 671 – 725 nm
Reflection BandBand 1: Rabs > 94% 400 – 410 nm
Band 2: Rabs > 94% 483 – 493 nm
Band 3: Rabs > 94% 559 – 563 nm
Band 4: Rabs > 94% 635 – 647 nm
Band 5: Ravg > 94% 800 – 1050 nm
Reflection Band, p-polRabs > 90% 400 – 410
Rabs > 90% 483 – 493
Rabs > 90% 559 – 563
Rabs > 90% 635 – 647
Ravg > 90% 800 – 1050
Reflection Band, s-polRabs > 98% 400 – 410
Rabs > 98% 483 – 493
Rabs > 98% 559 – 563
Rabs > 98% 635 – 647
Ravg > 98% 800 – 1050
Edge WavelengthBand 1: 420 nm
Band 2: 501 nm
Band 3: 577 nm
Band 4: 662 nm
Band 5: 735 nm


General Specifications
Angle of Incidence45 ° with a shift of ~0.35%/° (40 – 50 °)
Cone Half-angle0.5 °
SteepnessStandard
Filter Effective Index1.87 Understanding 'Effective Index of Refraction' neff
Group Delay Dispersion± 500 fs over 800 - 1050 nm reflection band for S-Pol and P-Pol
Optical Damage Rating1 J/cm sq. @ 532 nm (10 ns pulse width)
Flatness / RWE ClassificationSuper-resolution / TIRF


Physical Specifications (for standard parts - please contact us for custom sizes)
Transverse Dimensions, LxW25.2 mm x 35.6 mm
Clear Aperture≥ 80% (elliptical)
Surface Quality (Scratch-Dig)60-40
Substrate TypeFused Silica
OrientationReflective surface has laser dot–Orient in incoming light


Di01-R405/488/561/635/800-t1-25x36

  • Filter Thickness Tolerance, Unmounted: ± 0.05 mm
  • Filter Thickness, Unmounted: 1.05 mm
  • Search-Laser-Wavelength: 420 nm,501 nm,577 nm,662 nm,735 nm
  • Reflected Wavefront Error: < 0.33 P-V RWE @ 632.8
    < 2.5 P-V RWE @ 632.8
  • Nominal Flatness: < 1.4 P-V per inch @ 632.8

Di01-R405/488/561/635/800-t3-25x36

  • Filter Thickness Tolerance, Unmounted: ± 0.1 mm
  • Filter Thickness, Unmounted: 3.0 mm
  • Search-Laser-Wavelength: 405 nm,420 nm,488 nm,501 nm,561 nm,577 nm,635 nm,662 nm,735 nm,800 nm
  • Reflected Wavefront Error: < 0.33 P-V RWE @ 632.8
  • Nominal Flatness: < 0.19 P-V per inch @ 632.8
    < 1.4 P-V per inch @ 632.8

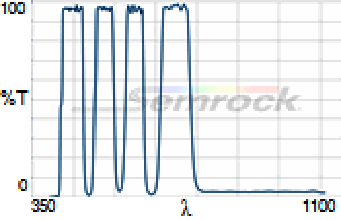

Transmission

Loading chart data...

Optical Density

Loading chart data...

Semrock Spectral Plot Info
Di01-R405_488_561_635_800-1050_Spectrum
