Moku:Lab – “Measure more with less

    • Future-proof your lab
    • Reconfigurable hardware platform
    • Simplify your workflow
    • Reduce costs
    • Lab freedom

With Moku:Lab, Liquid Instruments allow you to replace multiple pieces of equipment and combine them all into one powerful device. Designed to be a reconfigurable hardware platform, it gives access to twelve high-performance instruments which can be added and installed whenever they are needed.

Future-proof your lab:

Moku:Lab comes with five essential instruments included on the base model. You can then add other high-performance instruments, either from purchase, as a “Build-your-own” model, or as add-ons after purchase, as an upgrade, to personalise your Moku:Lab and enhance its capability.

Having a Moku:Lab for your experiments means you can keep one hardware platform and reconfigure the software to suit the project you are undertaking. Replacing multiple pieces of equipment with one device will dramatically reduce the cost of your lab, allowing you to “measure more with less” whilst future-proofing your lab at the same time.

The five essential instruments that come with every Moku:Lab are:

The additional instruments that come with the “Full-suite” model or that can be purchased at any time and installed onto the hardware are:

More information on the instruments available for Moku:Lab can be found through this link.



Specification Overview:

Please find the series specs tab for more detail on the specifications.

Differential Features:

Lab Freedom

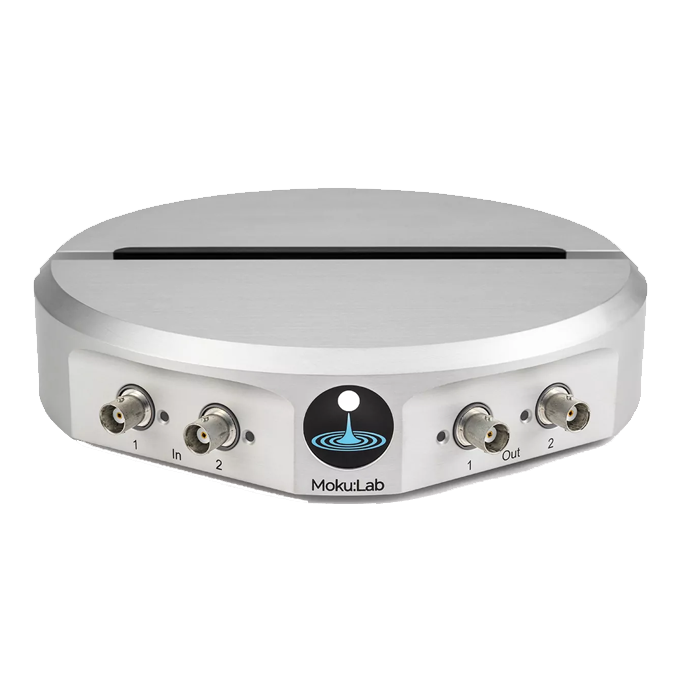

The iPad is the perfect partner for Moku:Lab, it even has a stand on top to hold the iPad, shown below; each full-suite order comes with an iPad which can be used to control experiments through the free app. Having a portable display and experimental controller allows you to take data from anywhere and to have ultimate freedom in your lab.

Moku:Lab is Wi-Fi enabled for communication and can even create its’ own wireless network if needed. For environments with Wi-Fi congestion, it can connect via an ethernet cable or a USB cable.

Versatile Analogue Front-end

The analogue front-end is designed for maximum versatility. The two inputs can be configured for AC or DC coupling and the two outputs allow you to generate two high-precision waveforms whilst measuring. Further details can be found in the specifications tab.



External Trigger

Moku:Lab has an external trigger input designed for TTL voltages, please see the specifications tab. Some of the instruments on Moku:Lab use the analogue inputs as high precision external triggers, giving more control over the system’s trigger system



Precision Timing

The ultra-stable internal oscillator can synchronise with external timebases to increase timing precision, please see the specifications tab for more information.

Bundle

Build-your-own, Full-suite, Upgrade your current Moku:Lab

Analog I/O
Analog Input
Channels 2
Bandwidth (-3 dB) 200 MHz into 50 Ω
Sampling rate 500 MSa/s per channel
Resolution 12-bit
Maximum voltage range 10 Vpp into 50 Ω with 20 dB attenuation
Input impedance 50 Ω / 1 MΩ
Input coupling AC / DC
AC coupling corner (-3 dB) 100 Hz into 50 Ω / 30 Hz into 1 MΩ
SNR 60 dBFS (per sample)
Input referred noise 30 nV/√Hz above 100 kHz
Connector BNC
Analog Output
Channels 2
Bandwidth (-3 dB) >300 MHz
Sampling rate 1 GSa/s per channel
Resolution 16-bit
Voltage range 2 Vpp into 50 Ω
Output impedance 50 Ω
Output coupling DC
Connector BNC



External Trigger Input
Trigger waveform TTL compatible
Trigger bandwidth DC to 5 MHz
Trigger impedance Hi-Z
Min trigger level 1.8 V
Max trigger level 5 V
Connector BNC
Clock Reference
On-board clock
Frequency 10 MHz
Stability < 500 ppb
10 MHz reference input
Expected waveforms Sine / square
Frequency 10 MHz ± 250 kHz
Input range -10 dBm to +10 dBm
Connector BNC
10 MHz reference output
Waveform type Square
Output frequency 10 MHz
Output level -3 dBm
Connector BNC

Compare Hardware Platforms

Compare the specifications of Liquid Instruments’ Moku range to decide which is best for you. Click the links to go to the desired product pages.

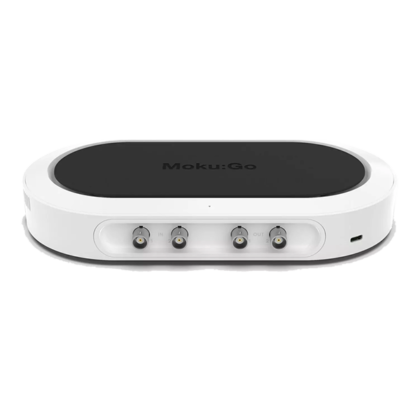

Moku:Go

Moku:Lab

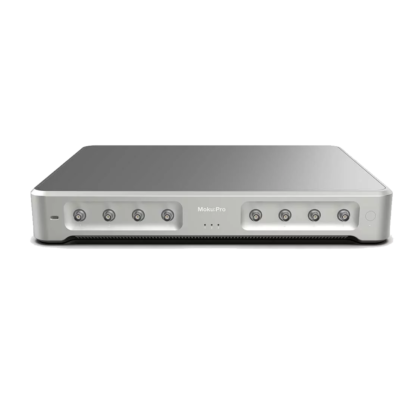

Moku:Pro

 Dimensions
Weight
1.7 lb / 750 g 3.5 lb / 1.6 kg 14.77 lb / 6.7 kg
Analog Inputs
Two 12-bit, 125 MSa/s input channels

30 MHz analog bandwidth

AC or DC coupling with 1 MΩ impedance

Input range up to ± 25 V

Two 12-bit, 500 MSa/s input channels

200 MHz analog bandwidth

AC or DC coupling with 50 Ω / 1 MΩ switchable impedance

Input range ±5 V

Four 10+18-bit, 5 GSa/s input channels

600 MHz analog bandwidth

AC or DC coupling with 50 Ω / 1 MΩ switchable impedance

Input range up to ±20 V

Analog Outputs
Two 12-bit, 125 MSa/s output channels

20 MHz analog bandwidth

± 5 V maximum output range

Two 16-bit, 1 GSa/s output channels

300 MHz analog bandwidth

±1 V into 50 Ω output range

Four 16-bit, 1.25 GSa/s output channels

500 MHz analog bandwidth

± 5 V into 50 Ω output range

Digital I/O
16-channel DIO at 125 MSa/s

Supports 3.3 V logic (5 V tolerant)

Dedicated TTL trigger port Dedicated TTL trigger port
Programmable Power Supply
Up to four channels N/A N/A
Multi-instrument Mode
2 instruments simultaneously N/A 4 instruments simultaneously
Software & Utilities
Windows, MacOS App

API support for Python, MATLAB, and LabVIEW

MathWorks Live Scripting

iOS App

Windows App

API support for Python, MATLAB, and LabVIEW

iOS App

Windows, MacOS App

API support for Python, MATLAB, and LabVIEW

Additional Ports
USB-C

Magnetic Power Port

Optional Ethernet Port

Kensington Lock Port

USB Mini B

SD Card Slot

Ethernet Port

Kensington Lock Port

USB-C

10 MHz reference clock in and out

Ethernet Port

Available Instruments
Arbitrary Waveform Generator

Data Logger

Digital Filter Box

FIR Filter Builder

Frequency Response Analyser

Lock-in Amplifier

Logic Analyser / Pattern Generator

Oscilloscope / Voltmeter

PID Controller

Spectrum Analyser

Waveform Generator

Arbitrary Waveform Generator

Data Logger

Digital Filter Box

FIR Filter Builder

Frequency Response Analyser

Laser Lock Box

Lock-in Amplifier

Oscilloscope

Phasemeter

PID Controller

Spectrum Analyser

Waveform Generator

Arbitrary Waveform Generator

Data Logger

Digital Filter Box

Frequency Response Analyser

Laser Lock Box

Lock-in Amplifier

Oscilloscope

Phasemeter

PID Controller

Spectrum Analyser

Waveform Generator

Moku:Lab Data Sheet
Moku:Lab In Depth Specifications
Moku:Lab Quick Start Guide
