True Gaussian Laser Module

TGL-LASER

Osela Logo

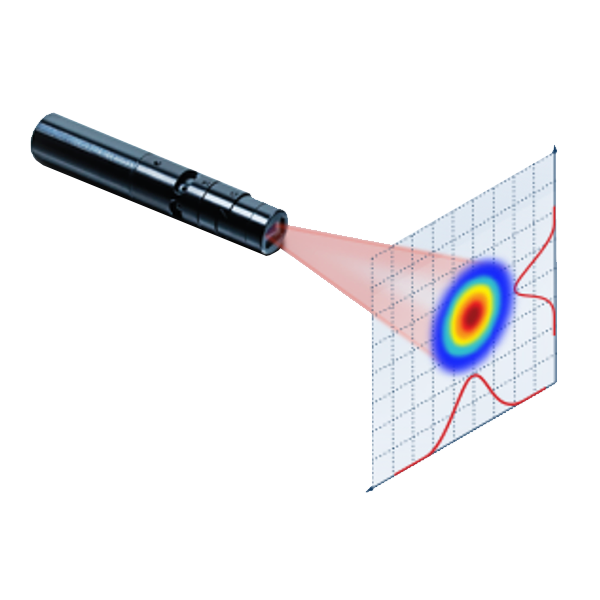

True Gaussian laser module – free space circularised laser beam projector with True Gaussian performance over long working range.



Features

  • Fibre-like beam quality
  • High gaussian fit > 95%
  • No secondary lobes
  • Circular beam
  • High polarisation ratio
  • Reliable, compact, and cost effective
  • Compatible with Osela’s beam shaping



Applications

  • Life Sciences
  • Instrumentation
  • Positioning
Wavelength Range

405 – 830 nm

Power Range

15 – 100 mW

Bore Sight

< 3 mrad

Long Term Power Stability

< 3 %, 2 minute warm up time

Operating Voltage

5 ± 0.5 VDC (5 to 24 optional)

Pointing Stability

<6µrad/°C

Polarisation Ratio

100:1 typical

Power Supply Cable

18 inches 3 conductors with fl ying leads

Protections (Built in)

ESD, over voltage (up to 30 VDC), over-temp shutoff (> 45 °C)

Rise/Fall Time

< 5 μsec, 100% modulation depth (10 Kohm impedance)

Wavelength Drift

≈ 0.25 nm / °C

Weight

< 20 g

Working Temp

-10 to +45°C (housing)
