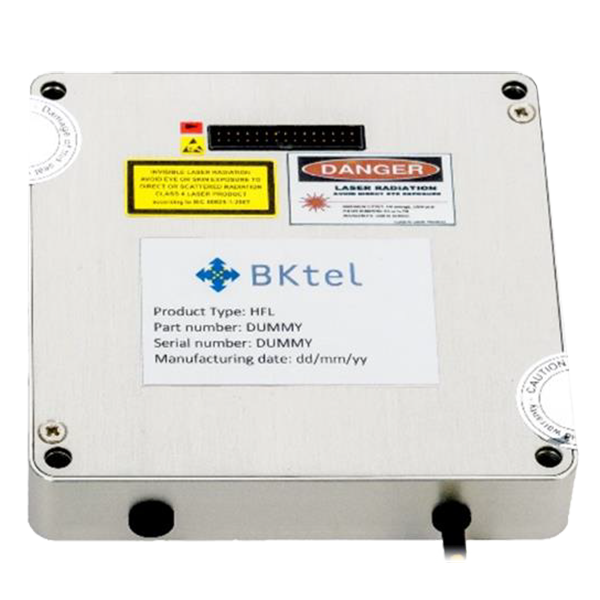

Pulsed laser at 1 µm or 1.5 µm band

HFL

Pulsed laser at 1 µm or 1.5 µm band



Applications

  • Distance measurement
  • LIDAR / 3D scanning
  • Test & measurement

Features

  • High output power
  • Compact package
  • Low power consumption



Model HFL HFL-1
Center Wavelength 1540 – 1560 nm 1030 / 1053 / 1064 – 1100 nm
Wavelength Drift 0.1 nm/°C
Laser Peak power Up to 5 kW Up to 25 W
Laser Output Power, average Up to 4 W Up to 5 W
Pulse Width 0.4 – 50 ns 0.4 – 10 ns
Pulse Energy 50 μJ Up to 150 μJ
Repetition rate 10 – 2000 kHz 10 – 500 kHz
Pulse Timing External trigger, TTL
Polarisation Random / Linear
Mechanical Dimensions 110 x 110 x 20 mm
Operating Case Temperature -5 – +65 °C
Output Fibre length 30 cm
Output Termination SC/APC, FC/APC, Collimator
Power Supply Voltage +5 / +12 VDC +12 / +24 VDC
Power Consumption 150 W <50 W
Communication Interface RS-232
HFL-Datasheet
