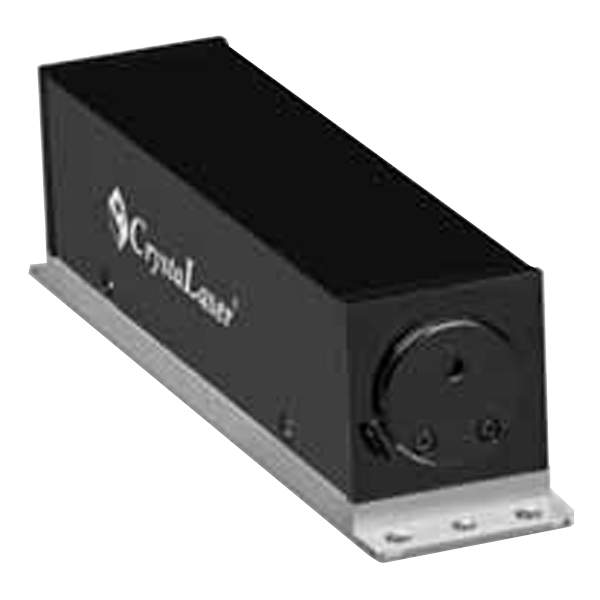

Compact Stabilised Solid State Lasers

DL Series

CrystaLaser Logo

Compact stabilised solid state lasers from CrystaLaser.

The most reliable Solid-State technology available, all in an ultra-compact footprint. The Direct Series lasers cover a variety of wavelengths suitable for laboratory research as well as OEM applications. The OEM option integrates the control electronics within the laser head, further reducing size.

Features:

  • Wavelength 375 nm to 1550 nm, power up to 1 W
  • Low noise and SLM
  • Excellent pointing stability and power stability
  • Ultra compact OEM package
  • High speed modulation up to 200 MHz
  • Free space and fibre delivery system



Applications:

  • Holographics
  • Flow cytometry
  • Fluorescence
  • Microscopy
  • Confocal microscopy
  • Raman Spectroscopy



Contact us for other wavelengths and output powers.
CW Violet-Blue Lasers
Wavelengths (+/- 5 nm) 375 nm, 405 nm, 445 nm
Laser version SLM version Low noise version Multimode version
375 nm output power (mW) 15, 10 , 5 16, 10, 5 30
405 nm output power (mW) 40, 30, 20, 10 100, 50, 25, 10 1000, 300
445 nm output power (mW) 30, 20, 10 40, 30, 10 1000, 400
Beam diameter (1/e2) 1.2 mm 1.2 mm 1.2:2.5 mm
Beam divergence, full angle 0.6 mrad 0.6 mrad 0.7:1.2 mrad
Transverse mode Circular, M2 ~1.2 Circular, M2 <1.2 Multi-mode, M2 <3
Output noise, rms < 1% (10 Hz – 50 MHz) < 0.5% (10 Hz – 50 MHz) < 1% (10 Hz – 50 MHz)
Longitudinal mode Single Multiple Multiple
Linewidth < 10⁵nm 0.8 nm 1 nm, nominal
Coherence length >50 m
Power stability, rms 1% over 8 hours; Ultra-stable options: 0.5% or 0.25% over 24 hours
Beam pointing stability < 0.02 mrad at constant temperature
Polarisation Linear; Ratio 100:1, Vertical
CW Blue Lasers
Wavelengths 473 nm, 488 nm
Laser version SLM version Low noise version Basic version (Part of Crystal Series – DPSS)
473 nm output power (mW) 10, 5 15, 10, 5 150, 100, 75, 50, 25, 10
488 nm output power (mW) 10, 5 20, 15, 10, 5
Beam diameter (1/e2) 1.2 mm 1.2 mm 0.7 mm
Beam divergence, full angle 0.7 mrad 0.7 mrad 1 mrad
Transverse mode Circular, M2 ~1.2 Circular, M2 ~ 1.2 TEM₀₀, M2 < 1.2
Output noise, rms < 1% (10 Hz – 50 MHz) < 1% (10 Hz – 50 MHz) 2% (0 – 10 kHz), ~30% at 300 kHz
Longitudinal mode Single
Linewidth < 10⁵nm 0.8 nm 1 nm, nominal
Coherence length > 100 m
Power stability, rms < 2% over 8 hours; Ultra-stable options: 0.5% or 0.25% over 24 hours
Beam pointing stability < 0.02 mrad at constant temperature
Polarisation Linear; Ratio 100:1, Vertical; > 300:1 option available
CW Red and Infrared Lasers
Wavelengths (+/-3 nm) 638 642 655 658 690 785 808 830 852 914 980 1550
Low noise version, max. power (mW) 30 100 70 100 50 120 120 100 120 200 500 500
SLM version, max. power (mW) 25 30 50 30 120 120 120 100 100 80
Transverse mode Circular beam, M2 < 1.2
Beam diameter (1/e2) 1 mm, nominal
Beam divergence, full angle 1 mrad, nominal
Output noise rms < 0.5% (10 Hz – 20 MHz)
Linewidth SLM version:< 10-4nm

; Low noise version: 1nm

Coherence length SLM version: >5 m; >100 m option available; Low noise version: Not specified
Power stability, rms < 2% over 8 hours; Ultra-stable options: 0.5% or 0.25% over 24 hours
Beam pointing stability < 0.01 mrad at constant temperature
Polarisation Linear; Ratio >100:1, >300:1 option available
DL-Series-Datasheet
