E25 Modular Barrier System

Request a quote or get in touch for advice.

laservision

Infrarednear infrared



Highlights

  • 2 to 9 segments possible
  • Tested light tight hinge system
  • Simple and quick setup
  • usable as a room divider in laboratories with powerful lasers
  • Award for outstanding design quality.

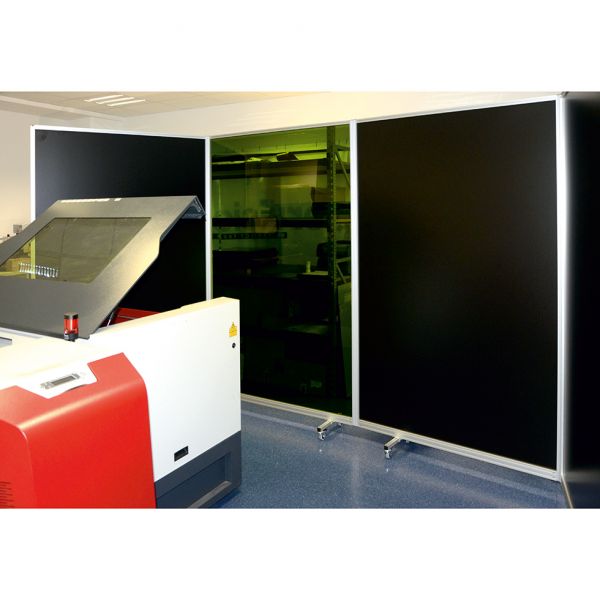

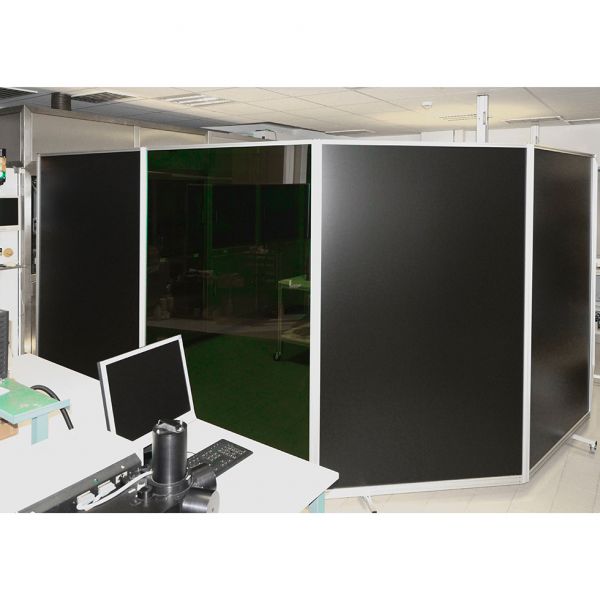

The E25 modular, fully assembled laser protective folding wall system from laservision offers a flexible and quick way to shield laser radiation during maintenance and service work on powerful lasers. The partition can e.g. can also be set up as a room divider in laboratories or laser-safe partitioning around optical tables.

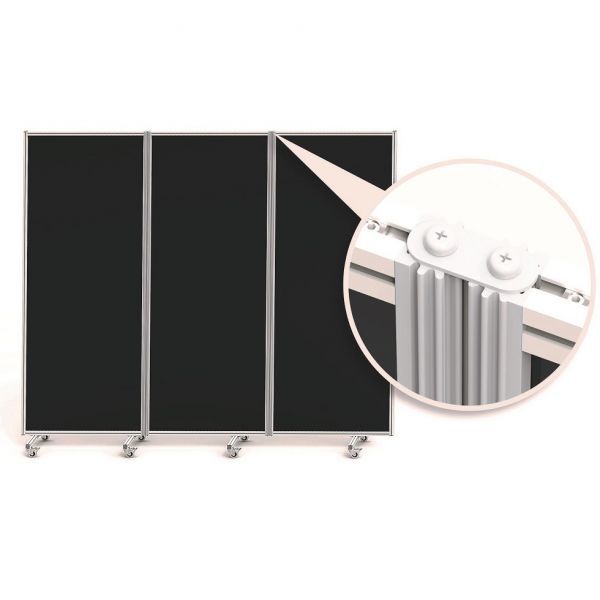

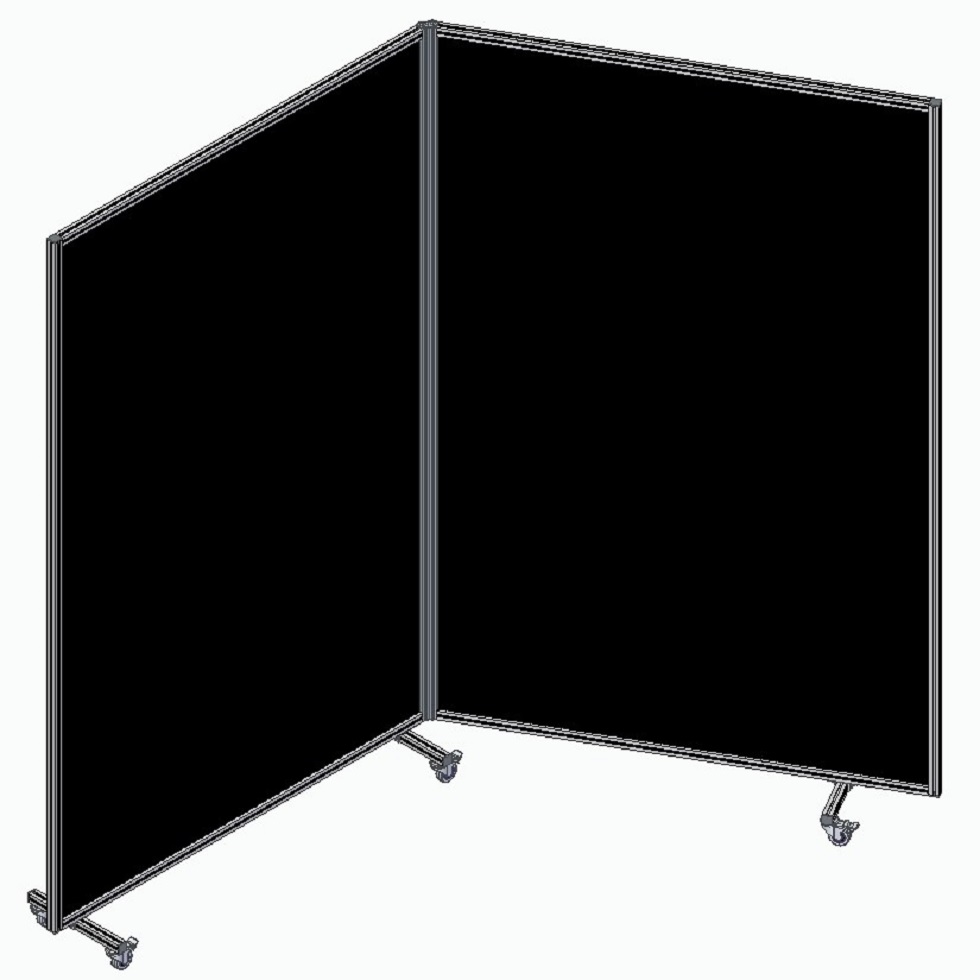

The special feature of the E25 folding wall system is the new, revolutionary hinge system in which, without an additional cover, a completely light and laser beam-proof flexible connection is achieved. No matter what angle (0 ° – 360 °) the wall is set up, there is protection against radiation. The application-specific configurable folding wall system consists of at least two start and end modules, and can be supplemented with the required number of E25 intermediate modules. The complete folding wall system can therefore consist of 2 to 9 modules. The basic system is equipped with two approx. 30cm long brackets with lockable rolls (industry standard). Each additional module has only one bracket with 2 lockable rollers. This enables an individual installation, as required.

The standard plate material (M7P06) is based on an aluminum sandwich structure with coated aluminum cover plates (black). This has been tested and certified in accordance with DIN EN 60825-4. Optionally, all other laservision filling materials (e.g. plastic windows) can be installed. Due to the flexibility of the hinge, the laser protection folding wall system can be stored in a very space-saving manner. It is secured in the end position with a sturdy strap supplied.

Despite the mentioned flexibility and extensive equipment, the E25 modular folding wall system can be used without any installation and tools.

COLOUR: Black &Silver
PROTECTION RANGE: Infrared
near infrared
PROTECTION CLASS / NORM: EN 12254
EN 60825-4
PROPERTIES: both-sides usable
freely selectable number of modules
proven hinge system
stable standing
standard plate material M7P06

DIN EN 60825-4

1070nm | 960 kW/m2 | T2 | tmax = 210s

9000-11000nm | 615 kW/m2 | T2 | tmax = 105s

DIN EN 12254

810 nm AB5

1060 nm AB6

10600 nm AB5

Base Datasheet
Connector Datahsheet
Frame Datasheet
