Laser safety curtain SHELTER-LIGHT

BC3.F1P01

Please ask for a quote or contact us for advice.

laservision

Infrarednear infraredultraviolettvisible

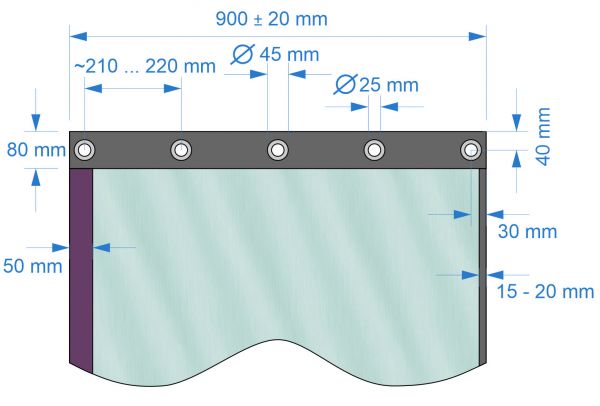

The single-layer laser safety segment BC3.F1P01 offers a width of about 900mm and 1,800mm and a length (height) of 2000mm up to 3500mm. The single segments provide a privileged adjustment which is equally marked and is connected via Velo strap. Mounting is provided by a set of eyelets on top of the curtain element. The length (height) of the segments can be fitted individually. The laservision single-layer curtain is certified acc. EN12254.

The laser safety curtain SHELTER-LIGHT (BC3F1P01) is a single-layer version of the well-known SHELTER-NG. It therefore accommodates to the increasing request for flexible and light laser safety solutions for low and medium power density (i.e. stray light), for example laboratory windows. In most of the applications the laser is used in a way that the laser beam does not hit the window. But, never the less, it is necessary to avoid the risk of direct glare to any user, personnel and visitors. Also the LIGHT-version is suitable for wavelength ranges within 180 – 11000nm and is certified acc. DIN EN 12254 (incl. M-protection ratings). The laser safety curtain LIGHT features the same great flexibility within the arrangement. In this case the single segments can be combined individually (standard sizes: 900mm width and available as 2000mm and 2500mm). The segments can be connected with a strap but alternatively, they can also be sewed together to the special sizes needed for window and door width. Mounting is realized by a set of eyelets on top of the curtain element. The length can be shortened free of charge.

The instructions for use can be found here.



Available sizes (mm)

  • 900×2000
  • 900×2500
  • 900×3000
  • 900×3500
  • 1800×2000
  • 1800×2500
  • 1800×3000
  • 1800×3500



Please enquire for custom sizes.



Please calculate required protection levels before using laser safety filters and compare with the filter provided.

COLOUR: silver grey
PROTECTION RANGE: Infrared
near infrared
ultraviolet
visible
PROTECTION CLASS / NORM: EN 12254
PROPERTIES: single-sided usable

Protection Levels

WAVELENGTH (NM) OD OPERATING MODE  / TESTED PROTECTION LEVEL
180 – 315 (OD5+) 180-315 D AB5 + IR AB3 + M AB5Y
>315 – 1050 (OD5+) >315-1050 DIRM AB5
>1050 – 1400 (OD5+) >1050-1400 DIRM AB5
>1400 – 20000 (OD3+) >1400-20000 DI AB3 + R AB3Y + M AB4
Datasheet
