Multi-channel TEC controller with up to 282 W per channel in a single rack-mountable 2U chassis

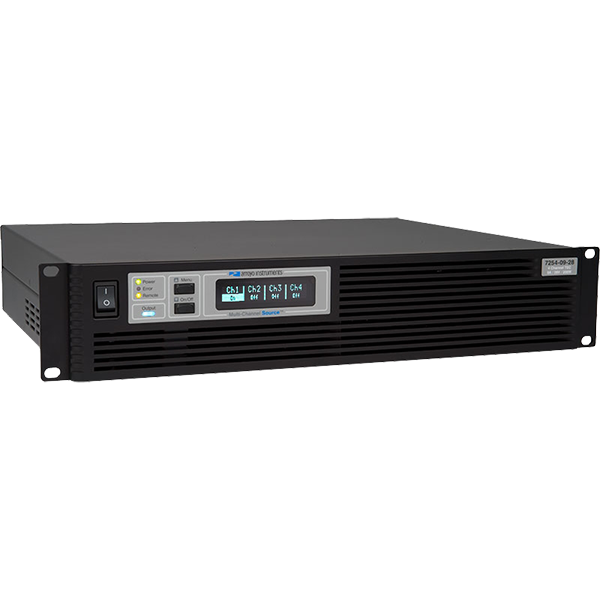

7254 Series TEC MultiSource

The 7254 Series TEC MultiSource Multi-Channel Controller is designed for applications requiring a large number of high power channels in a cost-effective and compact solution. The TEC MultiSource is an excellent building block for system applications such as device burn-in and characterisation. Built with the performance you would expect from an Arroyo Instruments product, and both Ethernet and USB connectivity, you can quickly and confidently get your system operational.

Model Type Size No. of Channels Amps / Volts Max Power
7254-06-56 TEC 2U 4 6 A / 56 V 282 W / ch
7254-09-28 TEC 2U 4 9 A / 28 V 200 W / ch
7254-10-28 * TEC 2U 4 10 A / 28 V 230 W / ch
7254-15-14 TEC 2U 4 15 A / 14 V 225 W / ch
* This product is temporarily unavailable. Please consider the 7254-09-28.
7254 Series Datasheet
