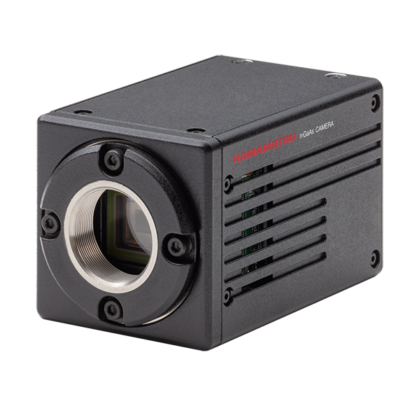

The C12741-03 is a high-sensitivity InGaAs camera designed to operate in the near-infrared (NIR) spectrum from 950 nm to 1700 nm. Equipped with both an analog (EIA) output and a USB 3.0 interface, it enables 14-bit image acquisition and adjustable exposure times. These features make it well-suited for applications such as silicon wafer and device inspection, laser beam alignment, and solar cell evaluation.
Key Features
- Superior NIR sensitivity for precise imaging
- 640 × 512 pixel resolution for detailed image capture
- Cooled design for low noise and enhanced stability
- Dual interface support: USB 3.0 and analog (EIA)
- Frame rate: Up to 60 frames per second
Applications
- Silicon wafer and device inspections
- Solar cell evaluation and defect detection
- Analysis of optical communication components
- Electroluminescence (EL) and photoluminescence (PL) imaging
| Type number | C12741-03 |
| Imaging device | InGaAs sensor |
| Effective no. of pixels | 640 (H)×512 (V) |
| Cell size | 20 μm × 20 μm |
| Effective area | 12.8 mm (H) × 10.24 mm (V) |
| Readout speed | 59.774 frames/s |
| Exposure time | 16.7 ms to 1 s * |
| Cooling method | Peltier cooling |
| Cooling temperature | +10 °C (Forced-air cooled, Ambient temperature +25 °C) |
| External trigger mode | Edge trigger, level trigger, start trigger |
| External trigger signal routing | SMA |
| Trigger delay function | 0 to 1 s (in 10 μs steps) |
| Image processing functions | background subtraction, Shading correction |
| Interface | EIA, USB 3.0 ** |
| Connector | USB 3.0 micro B type |
| A/D converter | 14 bit |
| Lens mount | C-mount |
| Power supply | DC +12 V |
| Power consumption | Approx. 16 W |
| Ambient operating temperature | 0 ℃ to ＋40 ℃ * |
| Ambient storage temperature | -10 ℃ to ＋50 ℃ |
| Ambient operating humidity | 30 % to 80 % (with no condensation) |
| Ambient storage humidity | 90 % max. (with no condensation) |
* Depend on the exposure time or ambient temperature, brighter or darker pixels than surrounding area or uneven pattern may appear in the image. It comes from the characteristics of InGaAs sensor and not the defects or failure of the camera.
** Equivalent to USB 3.1 Gen I
