Fibre optic input coupler for CW beams

LC-1 Series

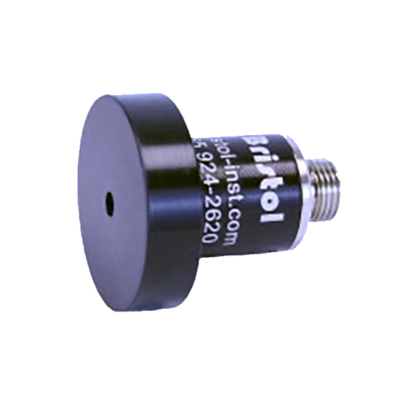

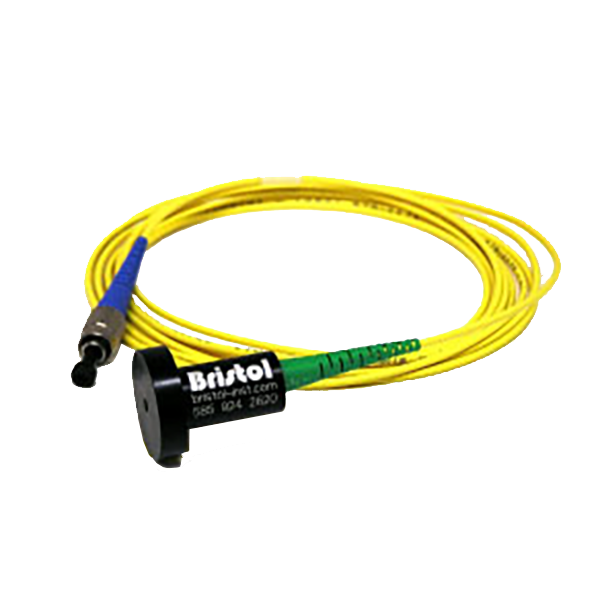

The LC-1 fibre optic input coupler is a convenient way to launch a free-space CW laser beam into an optical fibre. It includes focusing and alignment optics, a 1″-diameter mounting disk, and a 9 μm core-diameter fibre that is terminated with an FC/UPC or FC/APC connector.

A well-collimated laser beam enters the aperture in the centre of the mounting disk and is focused into the fibre. Built-in optics provide two slightly off-axis back reflections to facilitate alignment using a standard two-axis angular optical mount.

Specifications
Wavelength Range VIS: 400 – 1100 nm
NIR: 520 – 1700 nm
UV: 350 – 1100 nm
Aperture 2.5 mm
Mounting Disk Diameter 1″ (25.4 mm)
Optical Fibre 3 metres (2 metres for UV)
9 µm core diameter terminated
with FC/UPC or FC/APC connector
Coupling Efficiency [1] , [2] , [3] 5 – 35%
[1] With TEM00 collimated beam.
[2] Wavelength dependent.
[3] Characteristic performance, but non-warranted.
