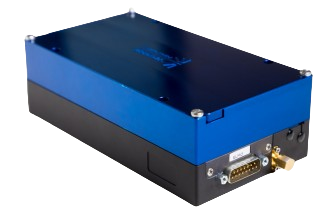

SuperLight Photonics SLP-1000

SLP-1000

SuperLight Photonics, specialist in supercontinuum lasers, has developed the first revolutionary portable wideband laser, the SLP-1000.

Its high-quality smooth wide spectral output offers an unrivalled light source for a wide range of industrial and bio-medical imaging applications and for the dynamic world of spectroscopy.

The SLP-1000 is the industry’s first revolutionary portable wideband laser. Its PAD – Patterned Alternating Dispersion™, provides a high-quality, coherent, and stable spectral output that offers an unrivaled light source for industrial and medical imaging applications and the dynamic world of spectroscopy.

Key Features

  • Wide spectral band (NIR)
  • Coherent
  • Smooth spectral output
  • Short pulse width
  • Low power consumption
  • Battery operated
Specifications
Spectral bandwidthPAD - Patterned Alternating Dispersion™, offers a high-quality, coherent and stable spectral output 450nm@-3dB, 1500nm@-20dB in the Near Infrared (NIR) band at a repetition rate of 100MHz with shorter than 20fs pulses
Broadband>400nm @ -3dB to >2000nm @-30db
Pulse durationShort pulse duration of around 20fs, an advantage of having a highly efficient supercontinuum generator
Power consumption12W average - 60W maximum
Output power25% of seed to a maximum of 1W at input
Spectral output optimizationPAD - Patterned Alternating Dispersion™ mechanism
WeightPortable wideband laser with a compact and rugged design, weighing 900gr or 32oz
VolumeBox dimensions 17.5cm x 9.6cm x 5.2cm, with a total volume of approx. 874cm^3 - or - 6.88”x 3.77” x 2.04”, with a total volume of approx. 52.91”^3
Repetition rateSame repetition rate as the seed laser
Seed laserThe SLP-1000 uses a seed laser from Menlo Systems, a global supplier of instrumentation for high-precision photonics metrology.
AccessoriesThe laser output is equipped with a Thorlabs-compatible screw thread (SM05), seamlessly integrating with other products from Thorlabs, a global designer and manufacturer of photonics equipment.
