Optical Amplifiers

Optical Amplifiers

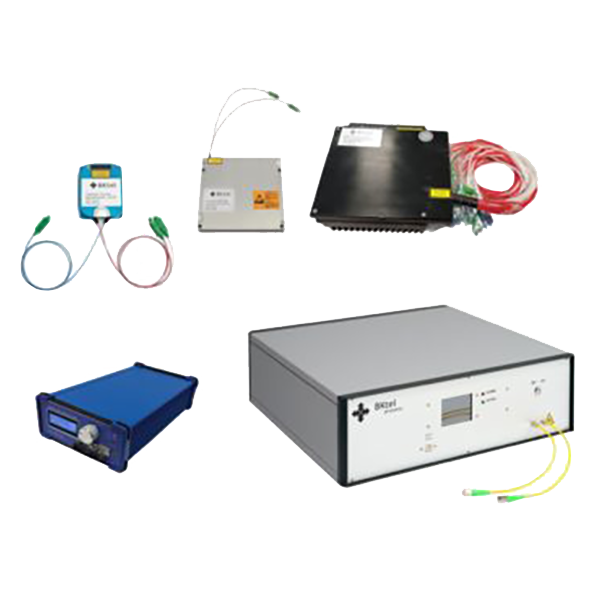

Laser 2000 has a very strong and succesful range of fibre optic amplifiers including Erbium, Ytterbium and Thulium doped devices. Most of these devices are supplied custom designed to your application and can be volume built for a very cost effective solution. We offer a full range of optical amplifiers in module format, covering both commercial and rugged operating conditions, non-polarised and linear polarisation signals in the 1.55 µm, 1 µm and the 2 µm bands.

Lower power optical amplifiers are available in the standard “MSA” format module which can then optionally be integrated in a benchtop system with 240V mains power supply and local control panel.

The BKTel Photonics High Power (5W) and Ultra High Power (10W) Optical Amplifiers are available in a larger format module, or again as a benchtop system. These are available in the 1.55 µm, 1 µm and 2 µm bands.

Typical appications are Data communication amplification, Fibre sensing, Freespace laser sensing, Narrow linewidth seed laser amplification (often PM – polarisation maintaining amplifiers) and MOPA (master oscillator power amplifier) for materials processing.

GOA telecom optical amplifier in multi-source agreement format
Wavelength 1530 – 1564 nm
Output Power Up to 32 dBm
Input Power Range -14 – +12 dBm
Noise Figure 5.5 dB
Polarisation Random / Linear
Power Stability 2 %
Optical Isolation 30 dB
Return Loss 40 dB
Fibre Termination / Connector SC/APC, FC/APC, others
Power Supply Voltage +3.3 / +5 V
Power Consumption <25 W
Operating Case Temperature 0 – +70 °C
Communication Interface RS232 / IC2
HPOA high power optical amplifier
Model HPOA-1 HPOA-1.5
Wavelength 1030 / 1053 / 1064 – 1100 nm 1540 – 1565 nm
Output Power Up to 37 dBm Up to 5 W
Input Power Range -10 – +15 dBm
Noise Figure 5.0 dB <5.5 dB
PDG 0.5 dB
PMD 0.5 ps
Polarisation Random / Linear
Stability <2 %
Optical Isolation 30 dB
Return Loss 40 dB
Fibre Termination / Connector FC/APC, Collimator, others
Power Supply Voltage +24 V +5 V / +24 V
Power Consumption <50 W
Operating Case Temperature 0 – +65 °C -5 – +65 °C
Communication Interface RS232
THPOA ultra high power optical amplifier
Model THPOA-1 THPOA-1.5 THPOA-2
Wavelength 1030 / 1053 / 1064 – 1100 nm 1540 – 1565nm 1750 – 2050 nm
Output Power Up to +46 dBm +30 dBm 33 dBm 37 dBm 40 dBm Up to +40 dBm
Input Power Range -8 – +15 dBm
Noise Figure 5.5 dB
PDG 0.5 dB
PMD 0.5 ps
Polarisation Random / Linear
Stability 2 %
Optical Isolation 30 dB
Return Loss 40 dB
Fibre Termination / Connector SC/APC, FC/APC, others SC/APC, FC/APC, collimator
Power Supply Voltage AC 100 – 240 V
Power Consumption < 200 W 16 W 25 W 45 W 60 W < 60 W
Operating Case Temperature 0 – +70 °C
Communication Interface RS232 / GUI
TOA benchtop, 1550 nm erbium doped optical fibre amplifier
Model TOA-170 TOA-200 TOA-230 TOA-300
Wavelength 1530 – 1565 nm
Output Power 17 dBm 20 dBm 23 dBm 30 dBm
Output Power Tunability 10 – 100 %
Mode of Operation CW
Polarisation Random (PDG <0.5 dB) / Linear (PER >20 dB)
Output Power Stability 3 %
Optical Output Isolation 30
Noise Figure 5 dB
Maximum Gain 20 dB 23 dB 26 dB 30 dB
Input Power -3 – +13 dBm
Control Mode CC / PC
Power Supply Voltage AC 100-240 V
Operating Temperature 15 – 40 °C
Optical Connector FC/APC, Collimator, others
Optical Fibre Type NA
Dimensions 1.5 U
Communication Interface RS-232
Optical-Amplifiers-Datasheet
