Gold Integrating Spheres

There are 3 variations in the gold integrating spheres series, each varying in diameter and wavelength ranges. For more information or guidance please contact our experts.

Artifex Engineering Logo

High quality gold coated, metal based integrating spheres for mid to high average power applications in the near and mid infrared.

The high reflectivity and lambertian diffusivity of the coating we use ensures wide band efficiency over the full range of  650nm-20µm.  These integrating spheres can be used for optical power measurement as well as beam homogenization for accurate spectral analysis. The 100mm sphere exhibits a homogeneity of better than 1% at the 25mm port when illuminated through the side (fibre) ports. We offer both convection cooled and liquid cooled models, depending on the power handling required. The convection cooled models feature a lapped, coated back plate suitable for mounting to a forced air or liquid cooled cold plate for higher power handling. The 25mm spheres have modular ports with choice of SMA and FC fibre receptacles or photodiode (choice of Germanium, VIS-enhanced InGaAs and IR-extended InGaAs). The 65mm and 100mm spheres have a choice of SMA or FC fibre ports. Photodiode ports are not offered since these spheres are designed for high power measurement whereby the sphere itself will become warm. This would change the sensitivity of a mounted photodiode. These spheres may be calibrated upon request. The photodiode port may be terminated with a BNC or SMA receptacle or with our OPM150 connector. Using the OPM150 connector, the integrating sphere is compatible with our OPM150 series of optical power meter.

Type Sphere inner diameter Ports Power Density Wavelength range

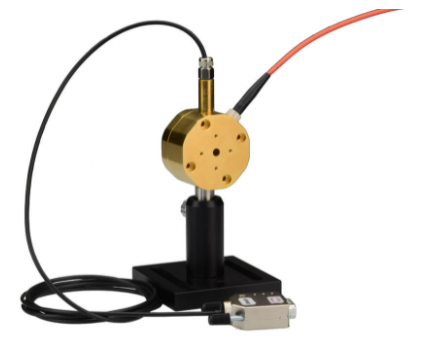

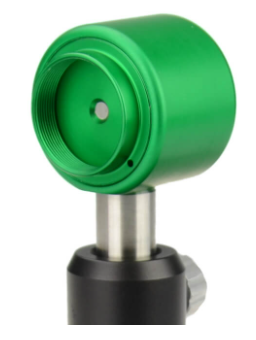

G25 – 25mm Gold Integrating Spheres 25mm Standard 3 port design (fibre and photodiode) 5000W/cm² 650nm – 20µm

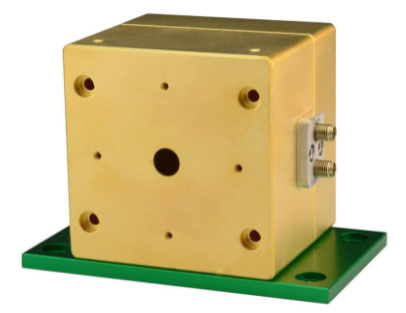

G65 – 65mm Gold Integrating Spheres 65mm Standard 2 port design (eg: power and spectrometer); 4 ports on request 5000W/cm² 650nm – 20µm

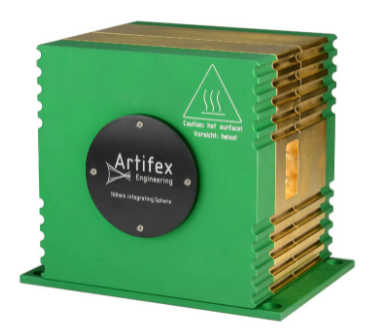

G100L – Liquid Cooled, 100mm Gold Integrating Spheres 100mm Standard 2 port design (eg: power and spectrometer); 4 ports on request 5000W/cm² 650nm – 20µm
Datasheet Polymer Integrating Spheres
Brochure
Datasheet Integrating Spheres
