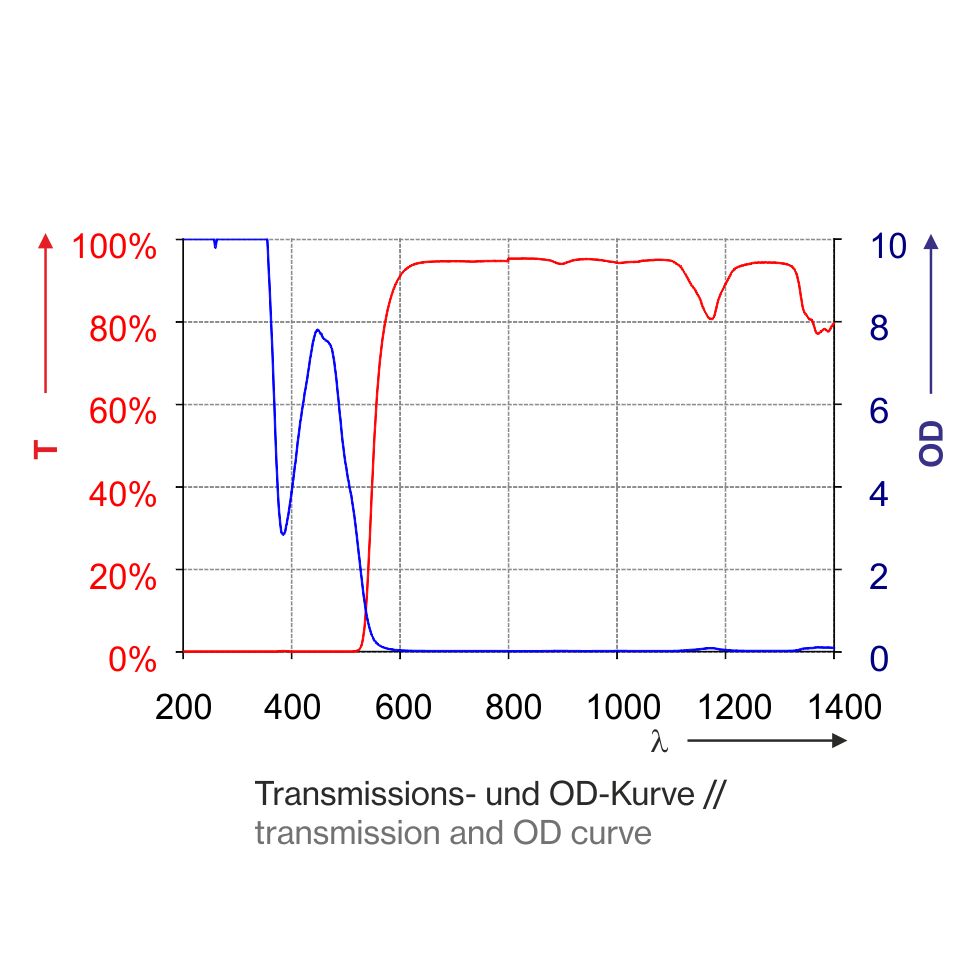

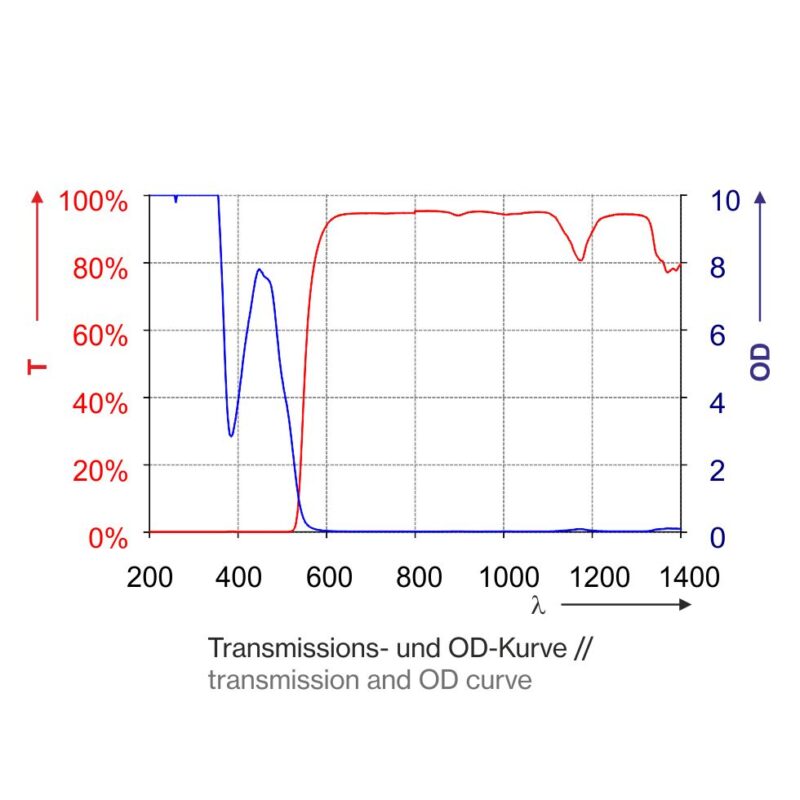

The laser safety window type P5E05 is a orange absorbing laser protection filter based on PMMA, without an additional reflective coating. The protection is based on absorption of the laser radiation in the material itself. The laser safety filter has a daylight transmission of approx. 45%. The laservision laser safety window P5E05 is marked exclusively with OD values (optical density) and is available in different standard and customer-specific dimensions up to a size of 3050 x 2050 mm². It is especially suitable for high power lasers within the UV- and blue wavelength range but also forlasers with lower poser within the green wavelength range. Please calculate required optical density levels before using the laser safety window and compare with the window provided.

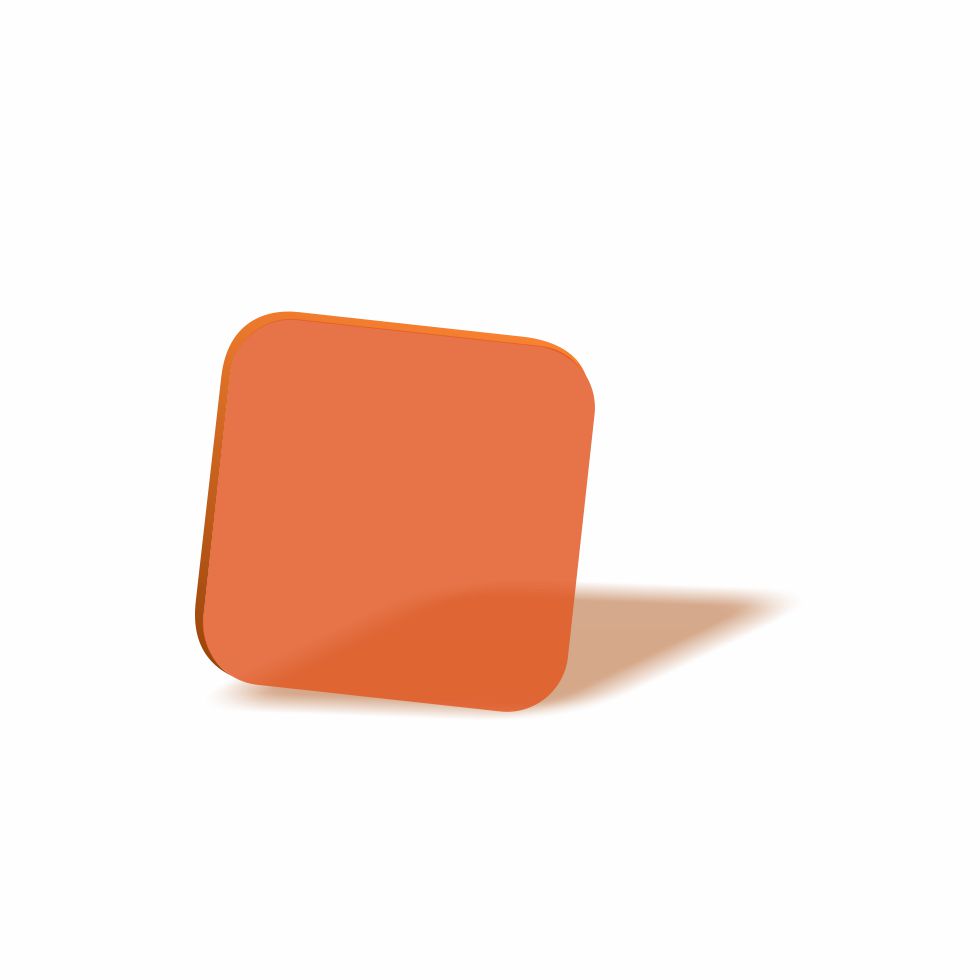

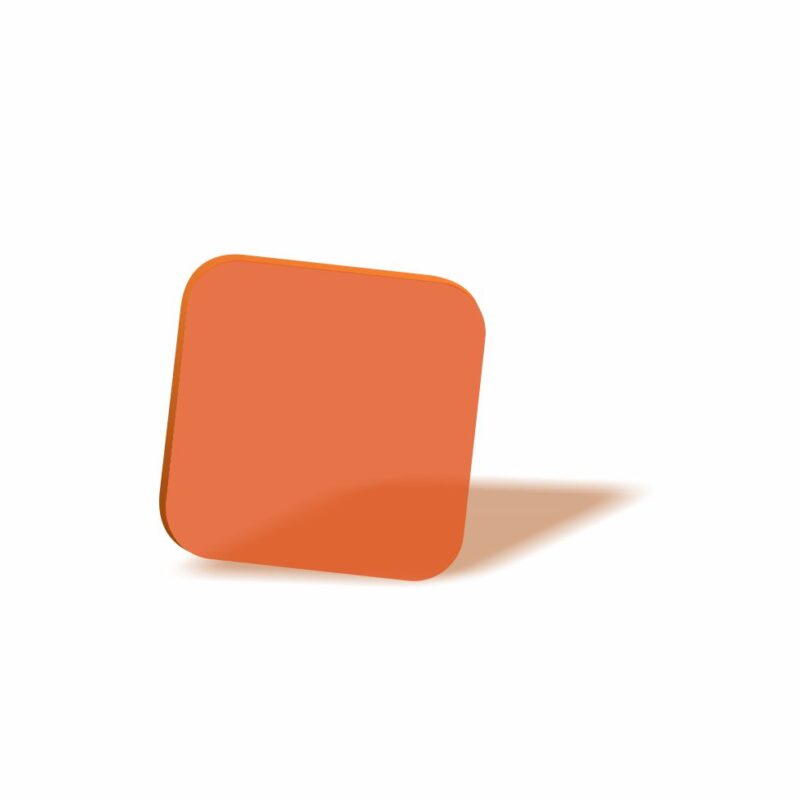

The plastic laser protection window based on PMMA P5E05 from laservision is particularly suitable for high power lasers in the UV and blue wavelength range (e.g. surface scanners or DIY cutting lasers) as well as for lower-power lasers in the green wavelength range, e.g. rangefinders. It additionally offers an OD8 + at 450nm. The orange-colored laser protection window is 200x100mm and offers approx. 45% daylight transmission (VLT). The laser safety window is available in various standard sizes and customer-specific up to a size of up to 3050 x 2050 mm². The thickness is approx. 3mm. The window is only supplied with an OD marking
Available sizes (mm):
- 200 x 100
- 297 x 210
- 450 x 300
- 600 x 450
Please enquire for custom sizes.
Please calculate required protection levels before using laser safety filters and compare with the filter provided.
