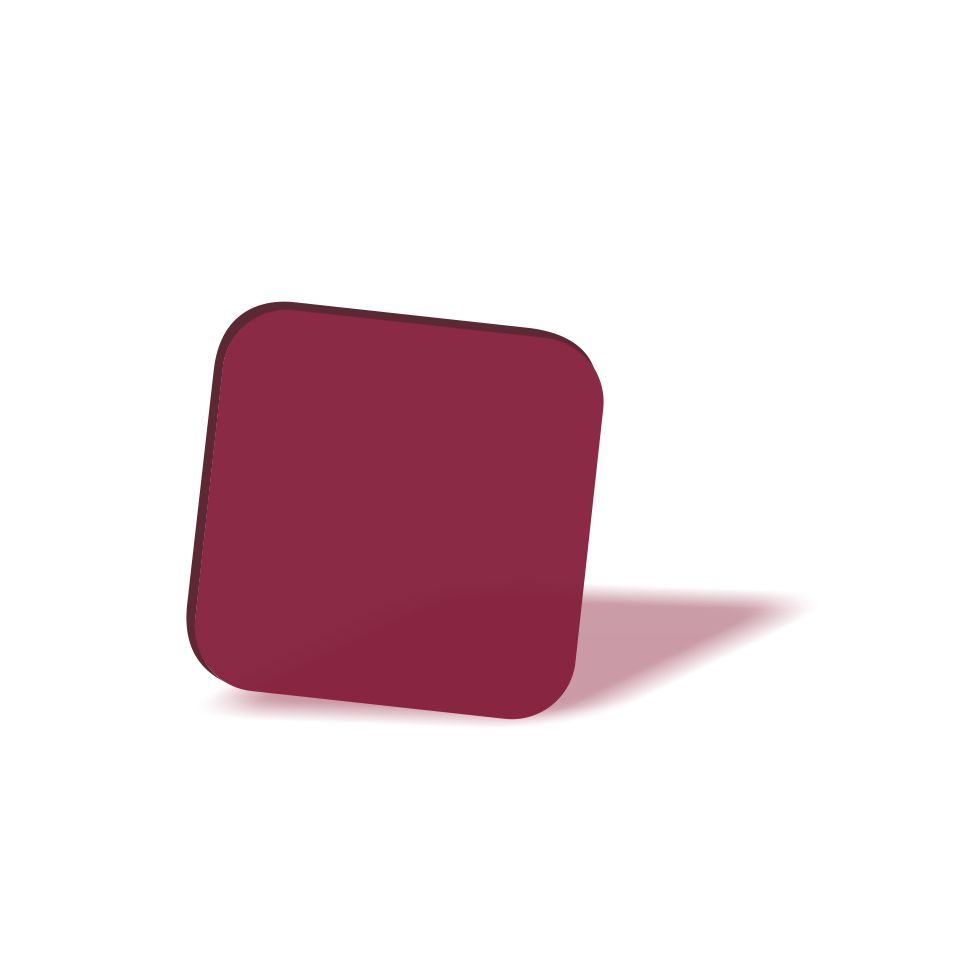

The laser safety window type P5E04 is a red absorbing laser protection filter, based on PMMA, without additional reflective coating. The protection is based on absorption of the laser light within the bulk material. The laser safety filter has a daylight transmission (VLT) of approx. 5%. The laser safety filter laservision P5E04 is marked only with optical density values (OD) and is available in different dimensions. It is particularly suitable for high-power lasers in the blue and green wavelength range as well as for lasers of lower power in the UV and yellow wavelength range. The visual brightness is sufficient and the color vision is somewhat restricted. Please calculate required optical density levels before using the laser safety window and compare with the window provided.

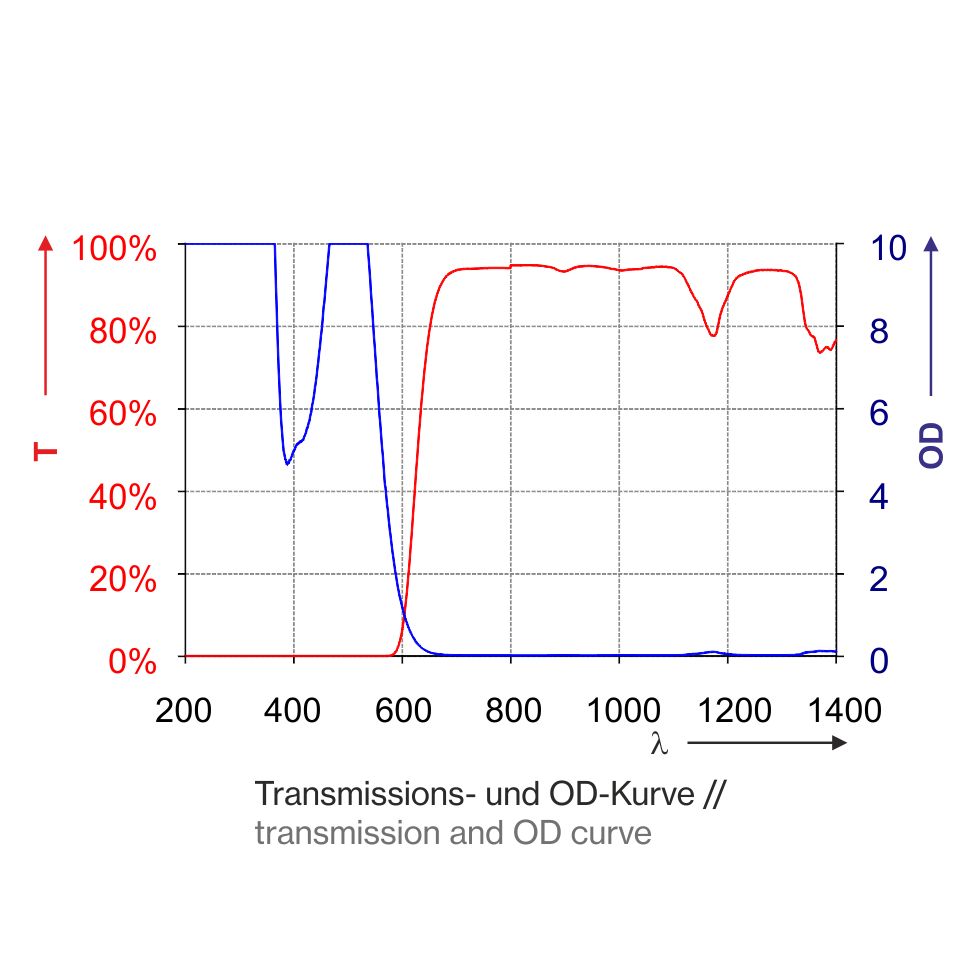

The plastic laser protection window P5E04 from laservision has full protection for high-power lasers in the blue and green wavelength range and has continuous protection of at least OD4+ from 180nm to 574nm. Another highlight is the high protection (OD8 +) in the 455-545nm range. It is also suitable for low-power lasers in the UV and yellow wavelength range. Another special feature of this P5E04 window is that it improves the visibility of red lasers. The red window has a dimension of 600x450mm and offers a daylight transmission (VLT) of approx. 5%. The laser safety material is available in different standard sizes and is also customized available up to a maximum size of 3050 x 2050 mm². The thickness is about 3mm. The window is exclusively marked with OD.
Available sizes (mm):
- 200 x 100
- 297 x 210
- 450 x 300
- 600 x 450
Please enquire for custom sizes.
Please calculate required protection levels before using laser safety filters and compare with the filter provided.
