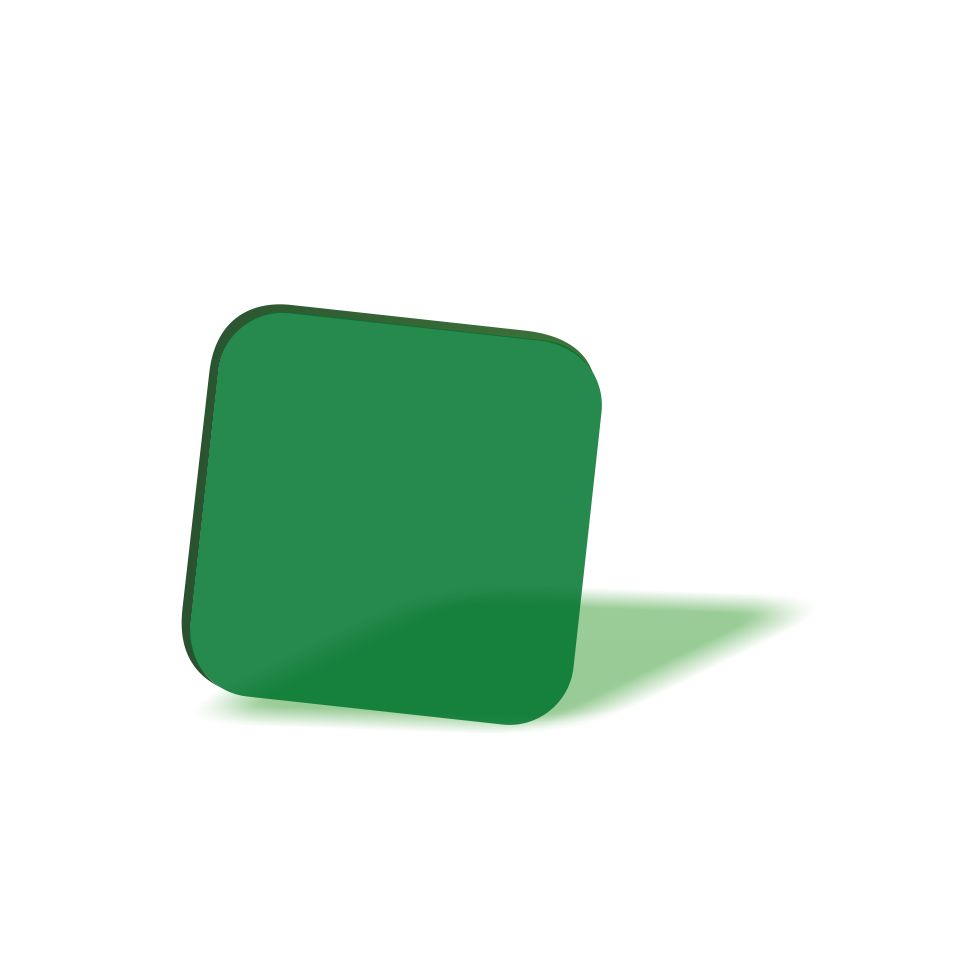

The plastic laser safety window P5B04 from laservision is a standard window for laser systems within the VIS (580-710nm). The dimension of this dark green laser safety window is 200x100mm and offers a VLT of 25%. The laser safety material is customized available up to a size of 915x610mm. The thickness is 3mm. The window is exclusively marked with OD.

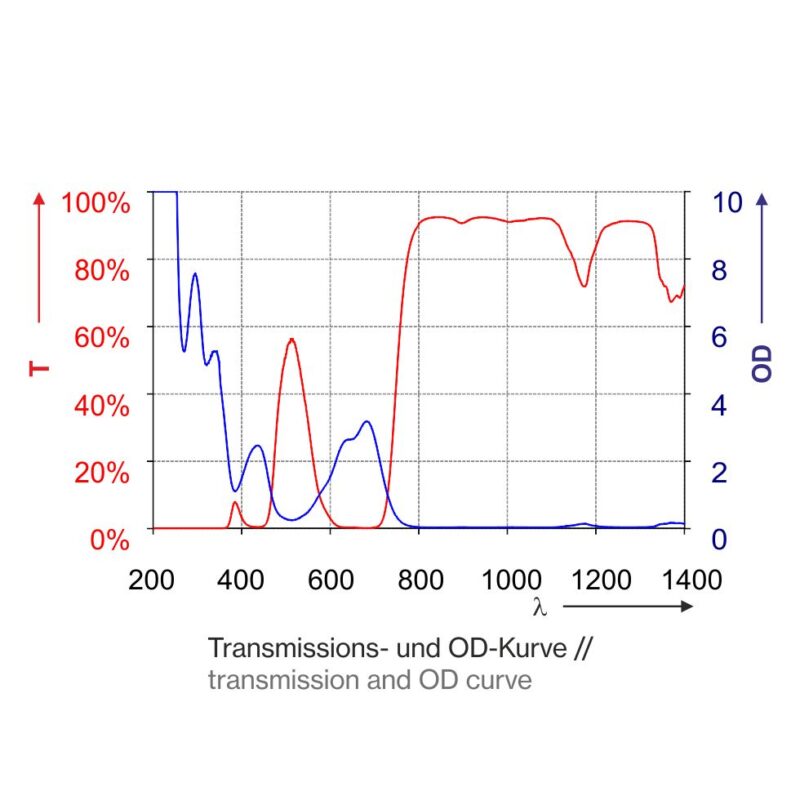

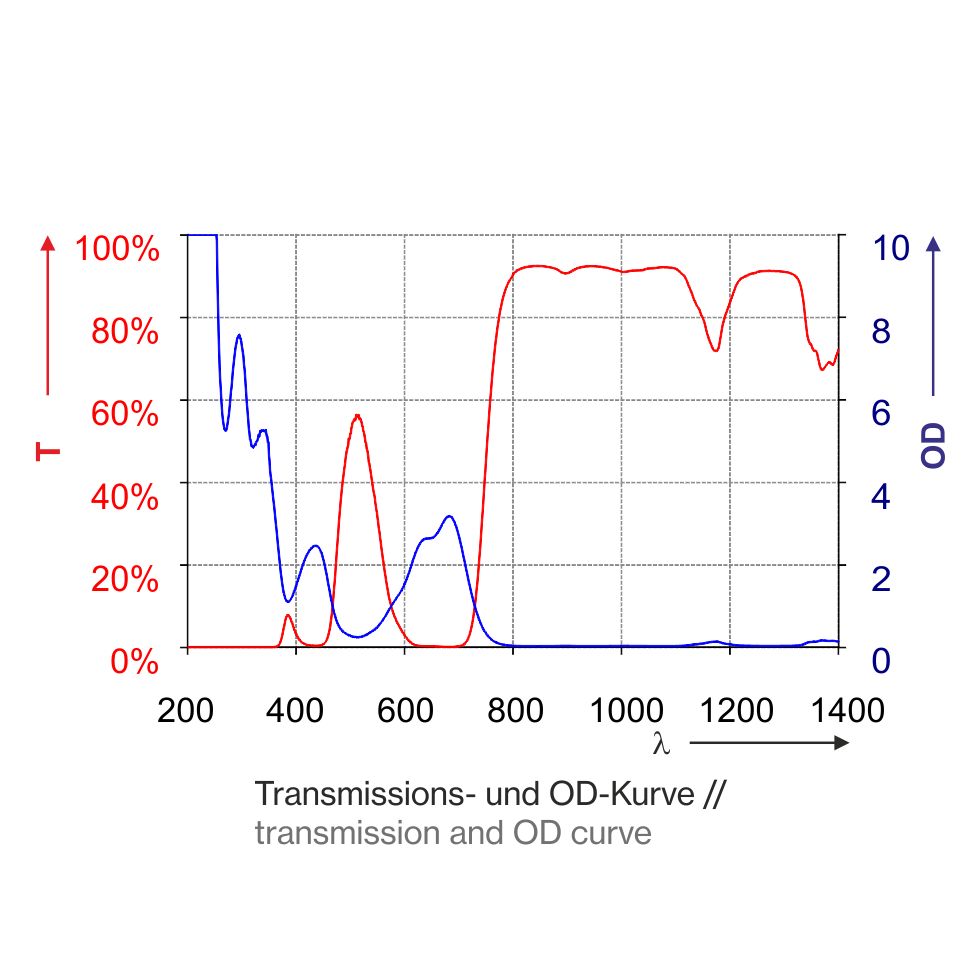

The laser safety window type P5B04 is a medium green absorbing laser protection filter, based on PMMA, without additional refelctive coating. The protection is based on absorption of the laser light within the bulk material. The laser safety filter has a daylight transmission of approx. 25%. The laser safety filter laservision P5B04 is marked only with optical density (OD) values and is available in different dimensions. It is especially suitable for laser in the red spectral range. Please calculate required optical density levels before using the laser safety window and compare with the window provided.
Available sizes (mm):
- 200 x 100
- 297 x 210
- 450 x 300
- 600 x 450
Please enquire for custom sizes.
Please calculate required protection levels before using laser safety filters and compare with the filter provided.
