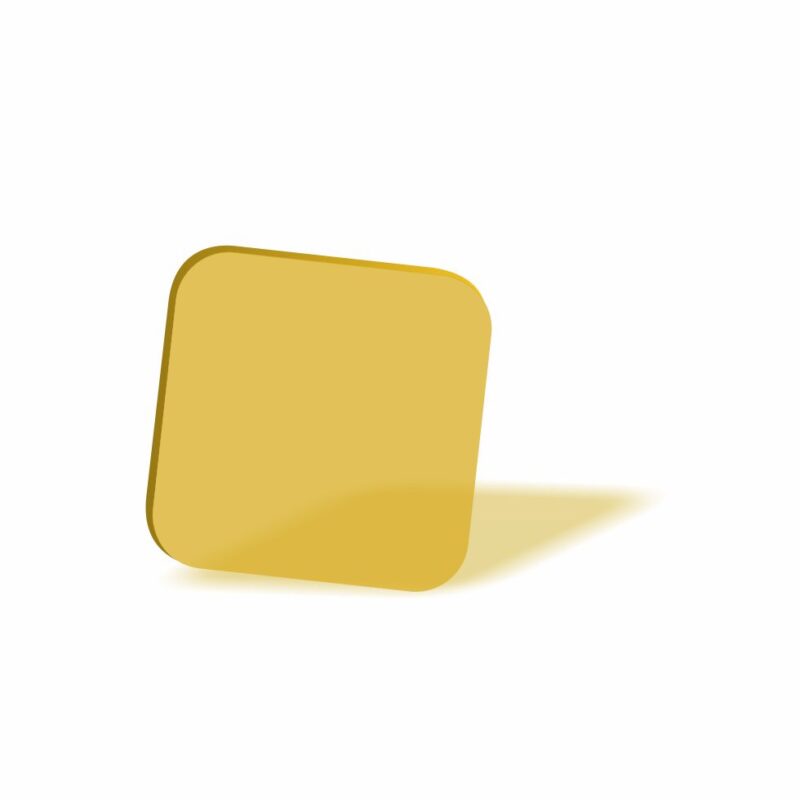

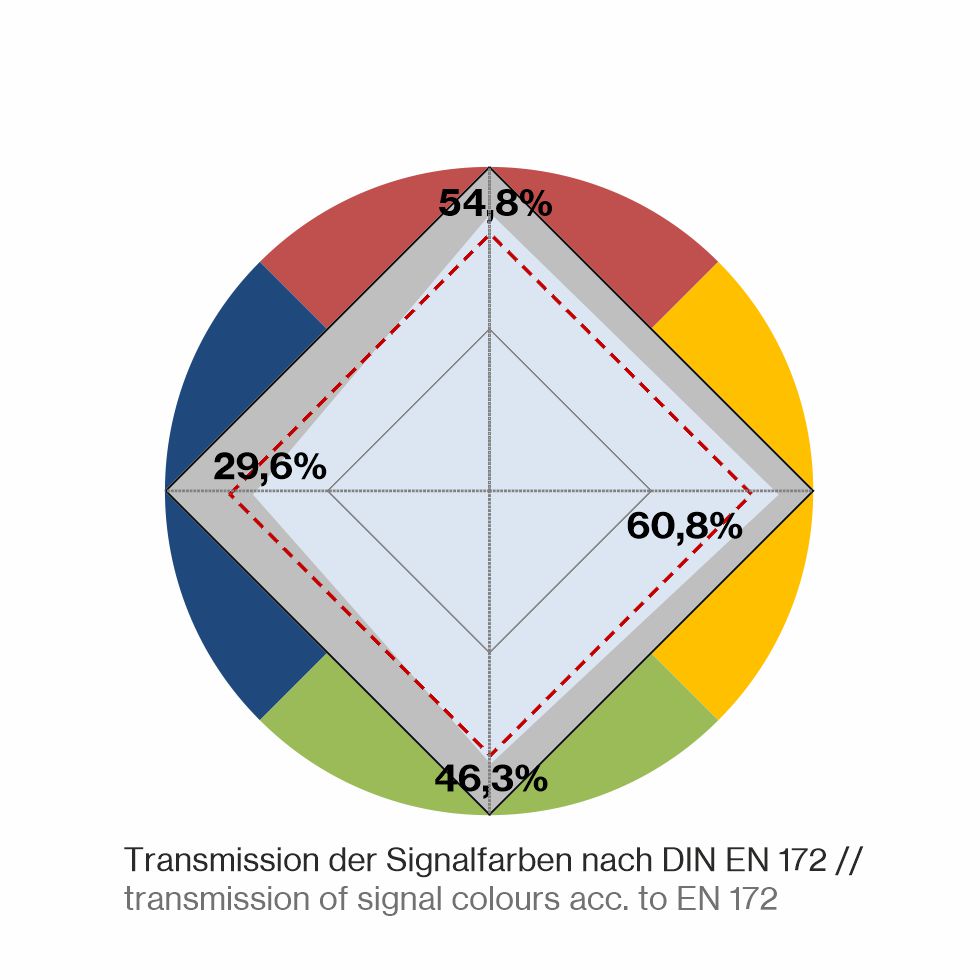

The laser protection window type P1P20 consists of a light gold-colored, absorbent plastic with a scratch-resistant coating and a thickness of 6mm. The laser protection is based on absorption of the laser radiation in the material itself. The window has a daylight transmission of approx. 52% and has a very good visual brightness and good color vision. The laser safety window laservision P1P20 is certified according to the current EN 60825-4 and has protective limit radiation (SGB) for 105s (test class T2): 10600W / m².

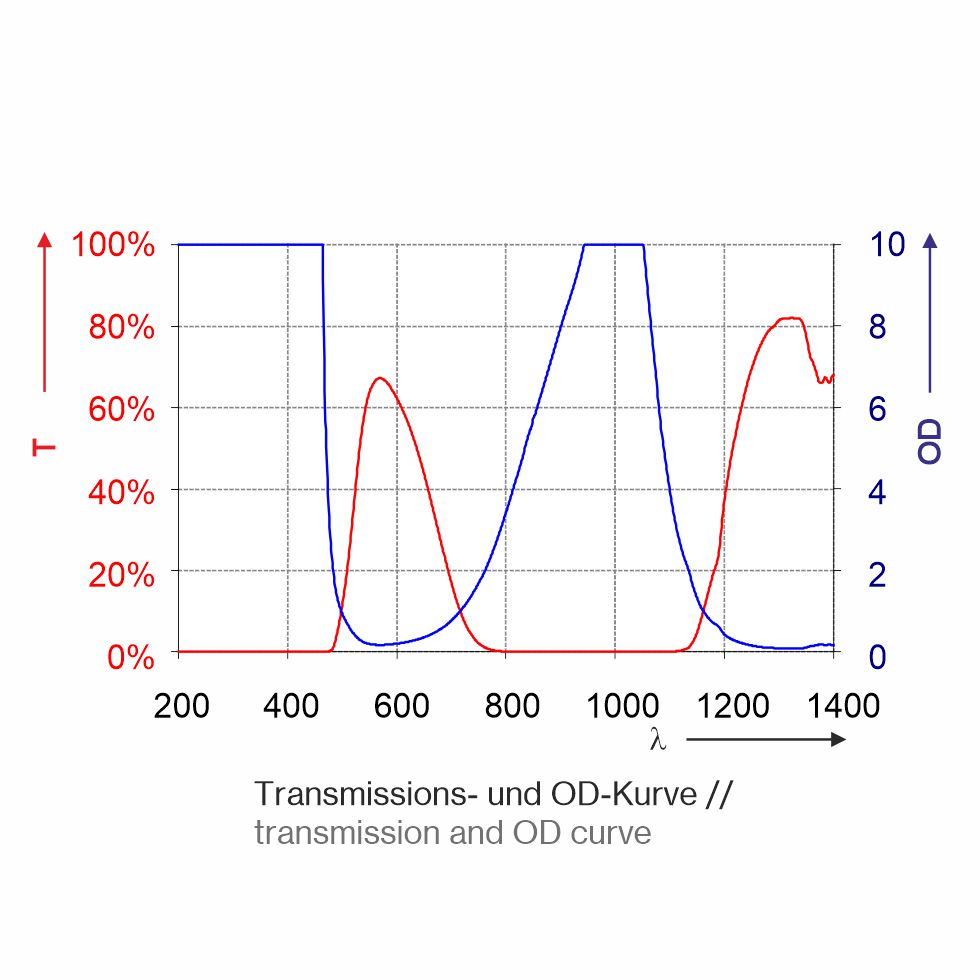

The laser protection is based on absorption of the laser radiation in the material itself. The window has a daylight transmission of approx. 52% and has a very good visual brightness and good color vision. The laser safety window laservision P1P20 is certified according to the current EN 60825-4 and has protective limit radiation (SGB) for 105s (test class T2): 102kW / m².This corresponds e.g. 200 W at 50mm beam diameter. Laser protection with at least OD10 exists from 180nm to 458nm, 975-1035nm and from 5180 to 14700nm. This makes the laservision laser protection window particularly suitable for blue high-power diodes, NdYAG, disk and fiber lasers as well as CO2-laser. The disc is available up to a size of 1840 x 1150 mm.
Available sizes (mm):
- 200 x 100
- 297 x 210
- 450 x 300
- 600 x 450
Please enquire for custom sizes.
Please calculate required protection levels before using laser safety filters and compare with the filter provided.
