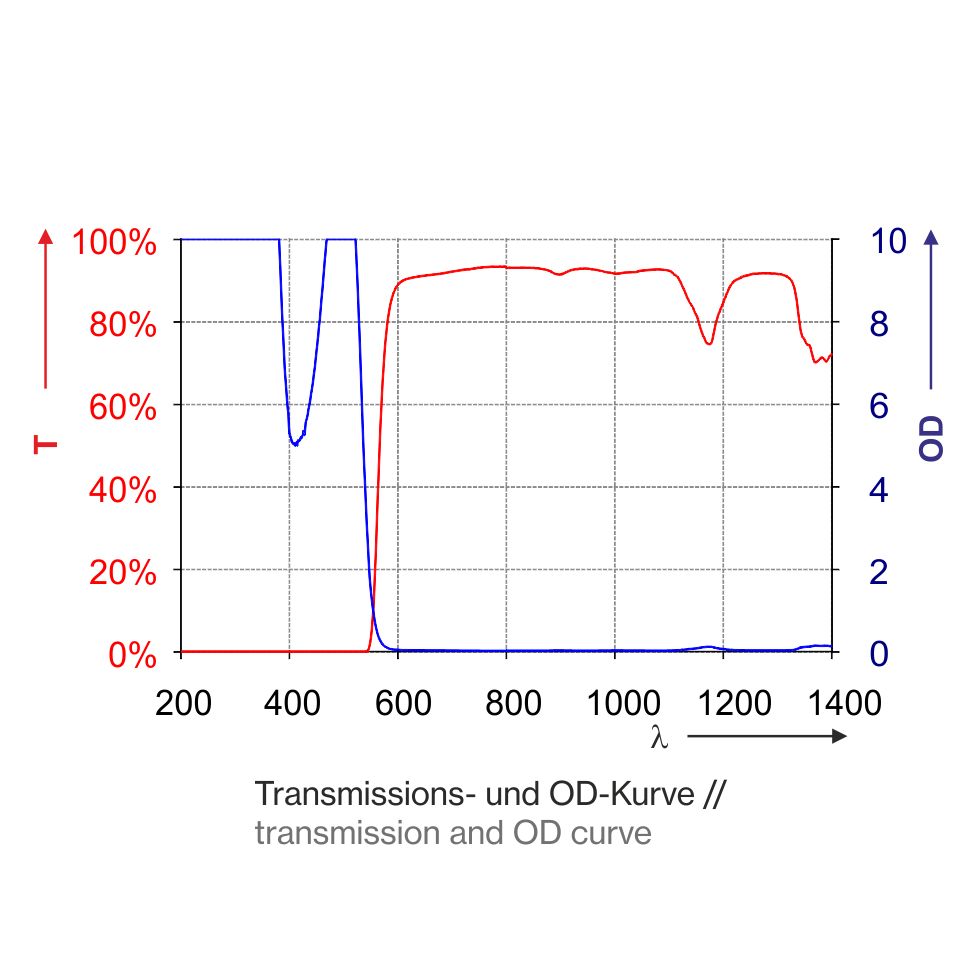

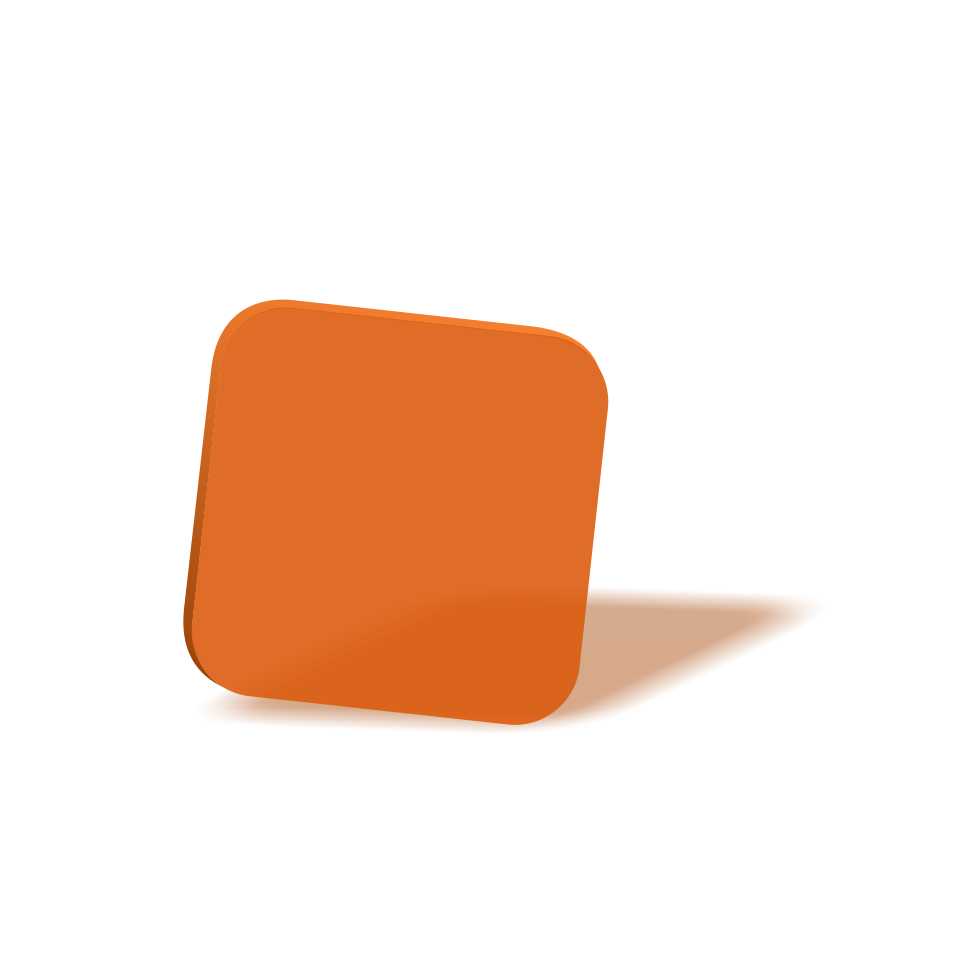

The laser safety window type P1N01 is an orange absorbing laser protection filter without additional reflective coating. The protection is based on absorption of the laser light within the bulk material. The laser safety filter has a daylight transmission of approx. 38%. The laser safety filter laservision P1N01 is CE-certified and is available in different dimensions. It is especially suitable for green lasers with 532nm wavelength. It offers OD10+ from 180nm – 370nm and an OD6+ at 532nm. Please calculate required optical density levels before using the laser safety window and compare with the window provided.
The laservision plastic laser safety window P1N01 is a window for green laser systems up to 535nm and offers an OD 10+ from 180 – 370nm and an OD6+ at 532nm. The orange colored filter material features 38% VLT and is user specific available up to a size of 1219x915mm. The thickness is 3mm. The window is CE certified according to EN 60825-4 and has additionally defined DIN 207 LB protection levels, which are confirmed by manufacturer’s declaration based on external test reports.
Available sizes (mm):
- 200 x 100
- 297 x 210
- 450 x 300
- 600 x 450
Please enquire for custom sizes.
Please calculate required protection levels before using laser safety filters and compare with the filter provided.
