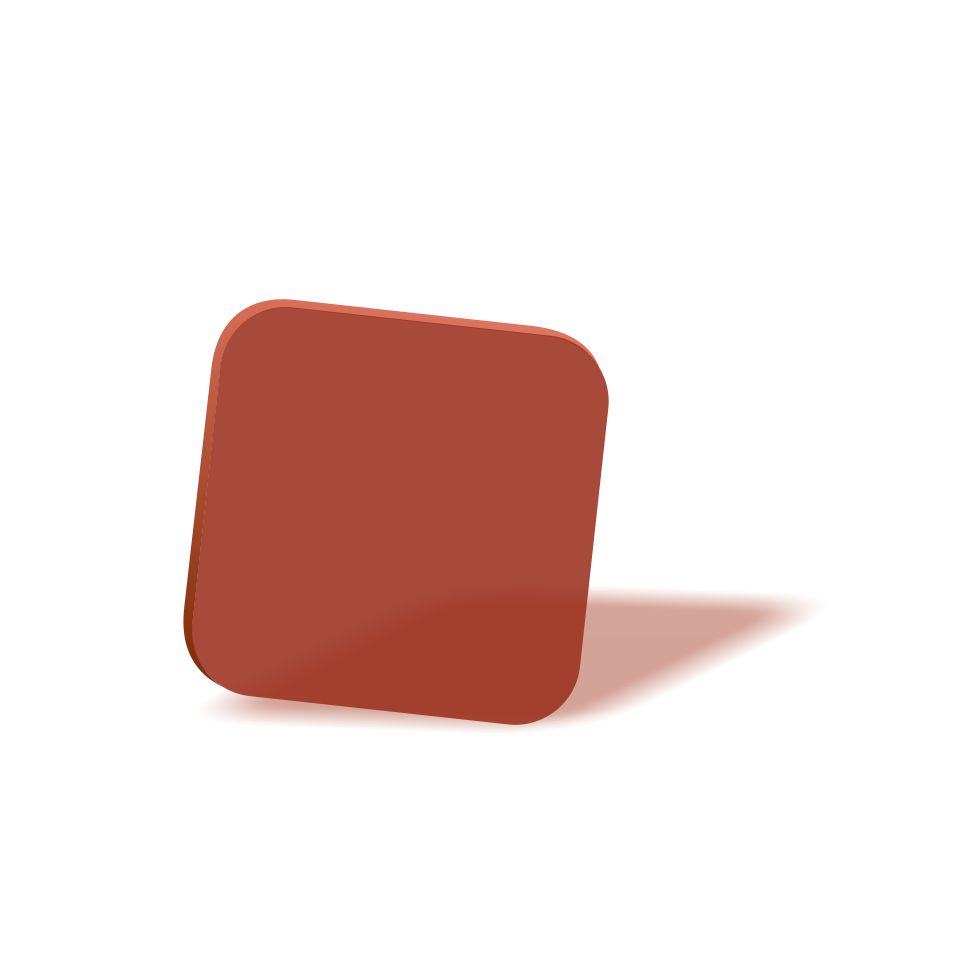

The laser safety window type P1L03 is a red-brown absorbing laser protection filter, based on PMMA, without additional reflective coating. The protection is based on absorption of the laser light within the bulk material. The laser safety filter has a daylight transmission of approx. 26%. The laser safety filter laservision P1L03 is CE certified and is available in different dimensions. It is especially suitable for UV and green lasers, IR pump diodes and YAG-lasers. Please calculate required optical density levels before using the laser safety window and compare with the window provided.

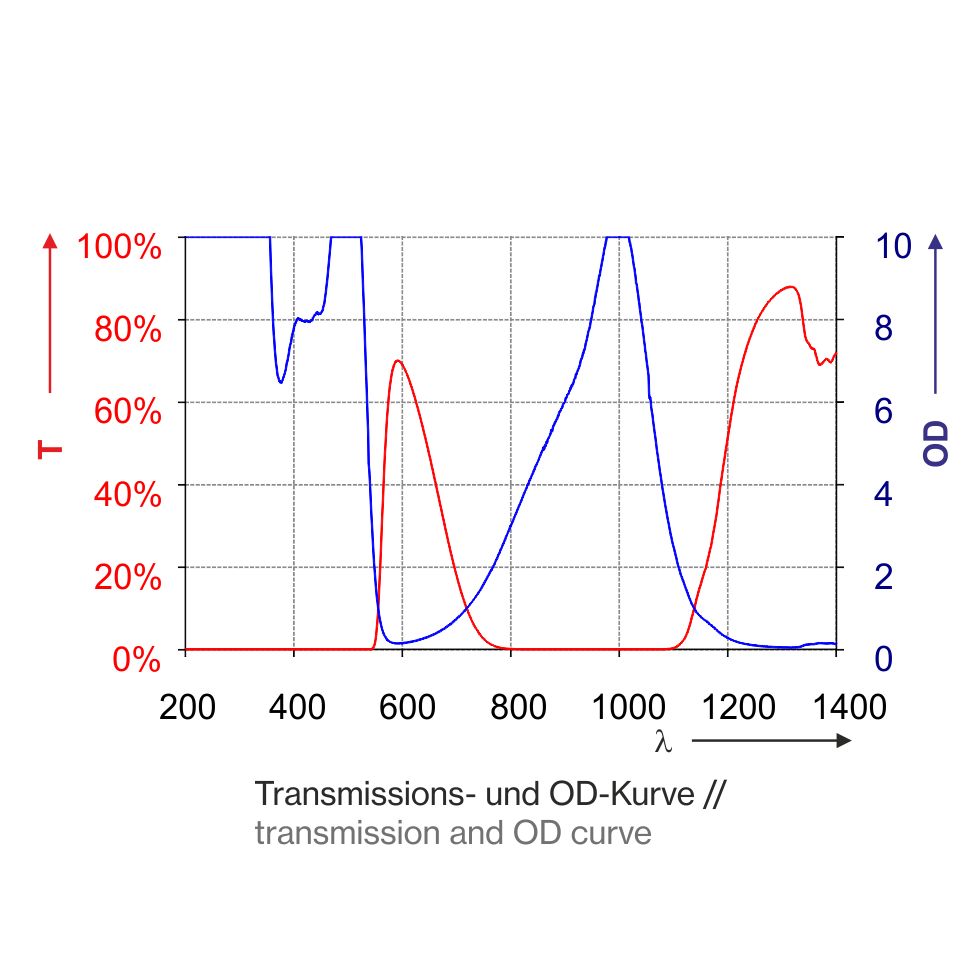

The plastic laser safety window P1L03 from laservision is a standard window for multiple frequent NIR-laser systems in the UV-, VIS (532nm) and the NIR (800-1070nm) area. The red-brown filter material features 26% VLT and is user specific available up to sizes 1219x915mm. The thickness is 3mm. It is characterised by high OD values in the following ranges, among others: OD 10+ from 180nm to 350nm, OD 8+ from 460 – 528nm as well as from 970 – 1030nm. The window is CE certified according to EN 60825-4 and has additionally defined DIN 207 LB protection levels, which are confirmed by manufacturer declaration on the basis of external test reports.
