The laser protection window P1H09 from laservision is suitable for Nd:YAG or fiber lasers. It is certified according to DIN EN 60825-4 and CE marked accordingly. There is a protection (OD6 +) in the NIR range at 1064nm-1100nm as well as an OD4 + in the red wavelength range from 630nm to 656nm. This enables use in machines with seam tracking sensors or similar measuring systems. It has a daylight transmission of around 18% and has sufficient visual brightness and color vision. The laser protection window P1H09 is available in various standard and customer-specific dimensions up to a size of 3000 x 2000 mm².

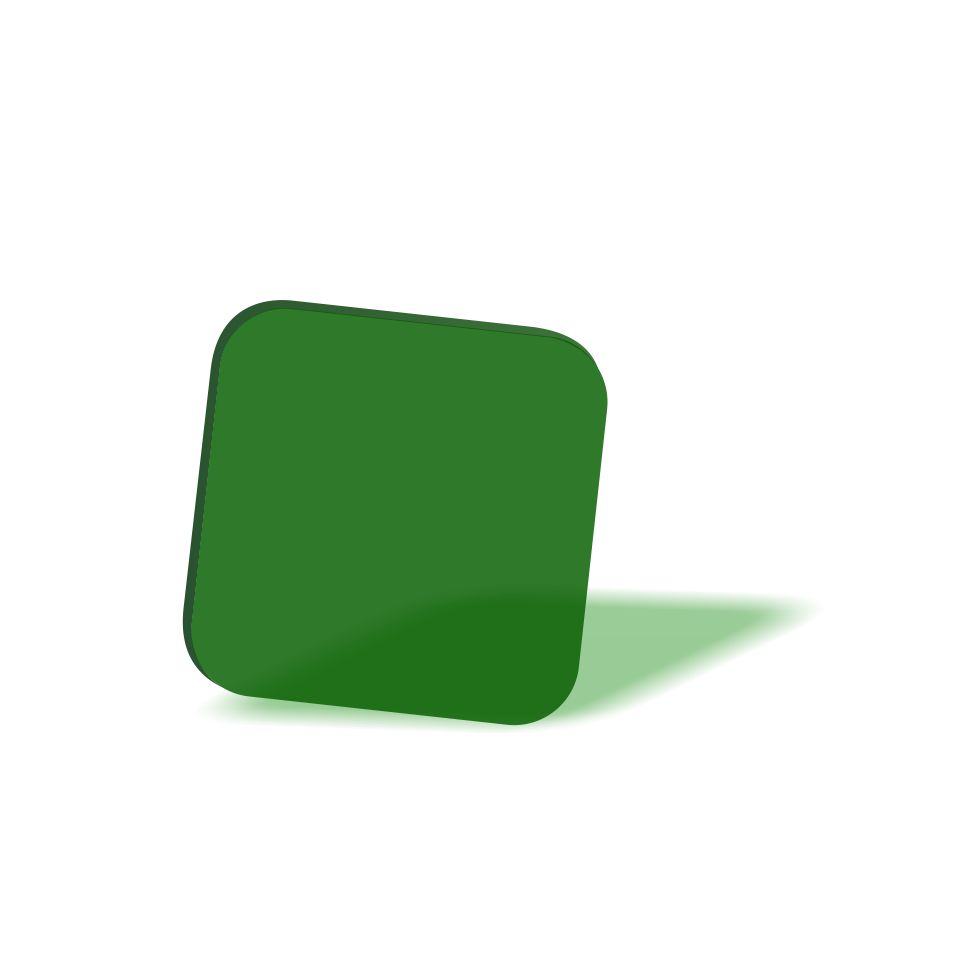

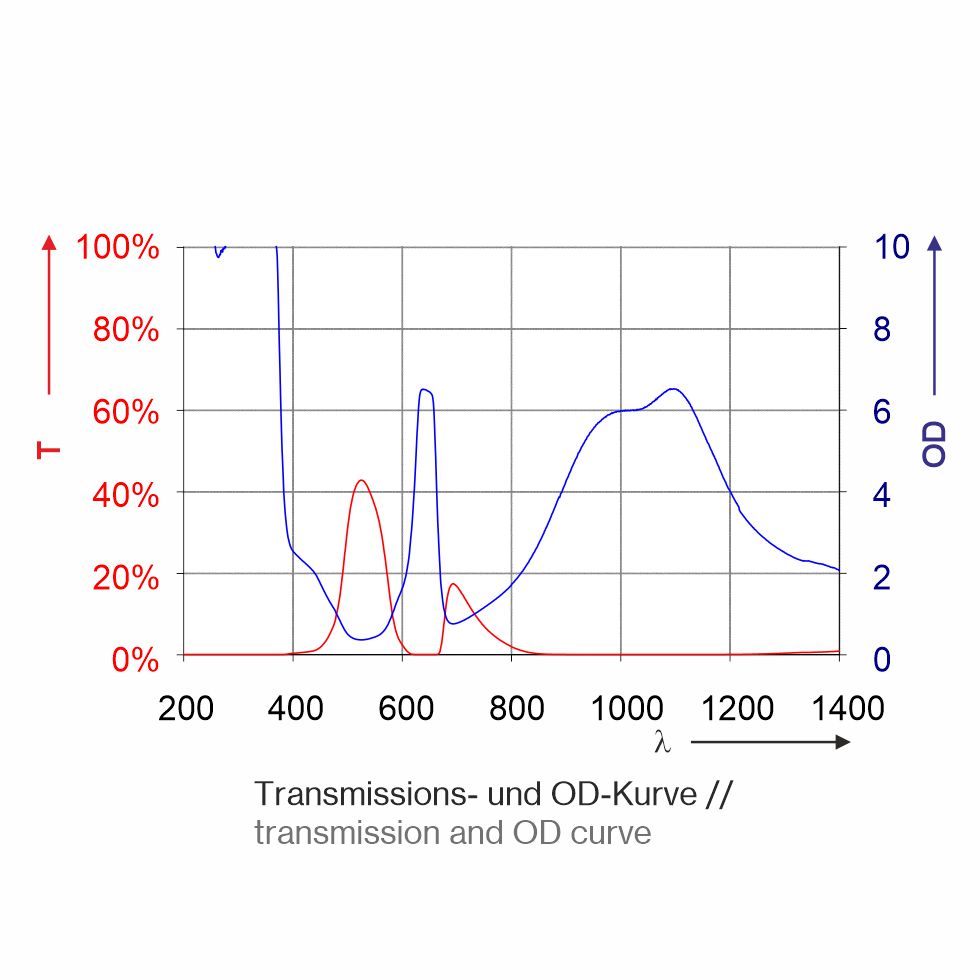

The laser protection window type P1H09 consists of a dark green, absorbent plastic, on a particularly laser-resistant PMMA basis. The laser protection is based on absorption of the laser radiation in the material itself. The laser protection window has a daylight transmission of approx. 18% and has sufficient visual brightness and color visibility. The P1H09 laser safety window is certified according to DIN EN 60825-4 and CE in order to ensure safe use in machines or shielding, even with large beam diameters. It is available in various standard sizes. Custom productions are also possible. There is broadband protection in the NIR range from 1064-1100nm (OD6 +) and there is also protection in the red wavelength range from 630nm to 656nm (OD4 +). The laser protection window type P1H09 is ideally suited for Nd:YAG or fiber lasers. Additional protection in the red area enables use in machines with seam tracking sensors or similar measuring systems.For sufficient laser safety
Available sizes (mm):
- 200 x 100
- 297 x 210
- 450 x 300
- 600 x 450
Please enquire for custom sizes.
Please calculate required protection levels before using laser safety filters and compare with the filter provided.
