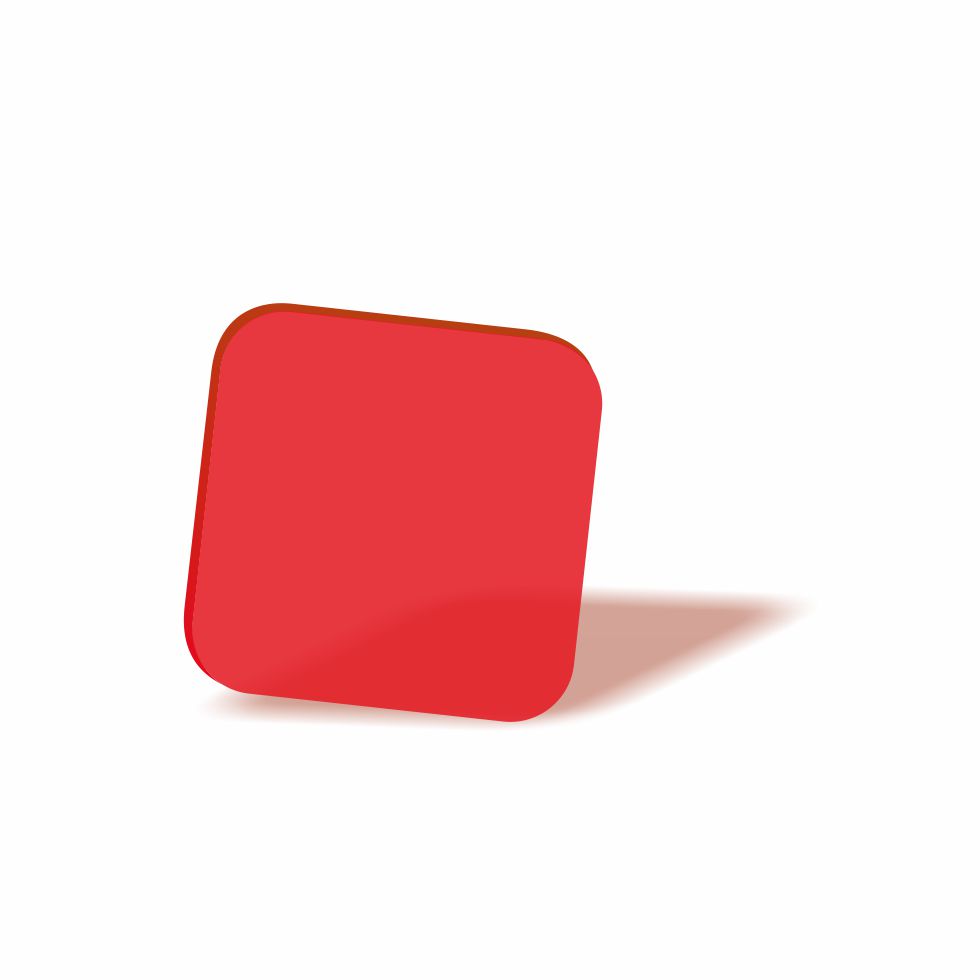

The laser safety window type P1E12 is a red-orange absorbing laser protection filter without additional reflective coating. The protection is based on absorption of the laser light within the bulk material. The laser safety filter has a daylight transmission of approx. 21%. The laser safety filter laservision P1E12 is CE-certified and is available in different dimensions. It is especially suitable for frequency doubled disk, fibre and Nd:YAG lasers as well as diode lasers within the blue and green range of wavelengths and UV lasers. Please calculate required optical density levels before using the laser safety window and compare with the window provided.
The laservision plastic laser safety window P1E12 is a standard window for UV lasers, blue and green laser wavelengths up to 540nm and offers an OD 10+ from 180 – 525nm and an OD8+ at 532nm. The red-orange laser safety window is 297x210mm in size and features 21% VLT. It is available in various standard and customer-specific dimensions up to a size of 3000x2000mm. The thickness is approx. 6mm. The window is CE certified according to EN 60825-4.
Available sizes (mm):
- 200 x 100
- 297 x 210
- 450 x 300
- 600 x 450
Please enquire for custom sizes.
Please calculate required protection levels before using laser safety filters and compare with the filter provided.
