980 nm BrightLine® Multiphoton LaserMUX™ Beam Combiner

Semrock Logo

Multiphoton LaserMUX™ beam combiners enable deeper tissue imaging and improved contrast in multi-color and multi-modal fluorescence microscopy. The filters set new performance standards by simultaneously achieving high transmission, high reflection, and low GDD over both reflection & transmission, while maintaining minimal wavefront distortion. Ideal for combining two femtosecond pulsed laser beams, they are perfect for optogenetics and other life science applications.

Combine two or more femtosecond pulsed lasers such as Ti:Sapphire (& OPO coupled), neodymium and ytterbium-doped fiber and glass lasers, and Cr-forsterite lasers.

< 1λ P-V RWE on 1 mm, optimized for reflecting laser beams up to 10 mm in diameter while minimizing RWE
< λ/10 P-V Transmitted Wavefront Error
< ± 100 fs² Group Delay Dispersion over popular femtosecond laser wavelengths

Note on spectral plots:
In the past, each shipment has included a spectral plot for every filter and every lot code in the shipment. In an effort to be more eco-friendly, we will no longer be including these plots with each shipment. If you require spectral plot data, please see here for more information.

Optical Specifications
Transmission BandTavg > 93% 1022 – 2100 nm over any 10 nm window
Transmission Band, p-polTavg > 95% 992 – 2100
Transmission Band, s-polTavg > 90% 1022 – 2100
Reflection BandRavg > 95% 770 – 938 nm over any 10 nm window
Reflection Band, p-polRavg > 90% 770 – 930 nm
Reflection Band, s-polRavg > 98% 770 – 968 nm


General Specifications
Angle of Incidence45 ± 1.5 °
Cone Half-angle1.5 °
Filter Effective Index1.77 Understanding 'Effective Index of Refraction' neff
Group Delay Dispersion Reflection (p-pol)± 100 fs² over 771 – 911
± 500 fs² over 757 – 933
Group Delay Dispersion Reflection (s-pol)± 100 fs² over 753 – 949
± 500 fs² over 751 – 970
Group Delay Dispersion Transmission (p-pol)± 100 fs² over 1020 – 2050 (excluding substrate, by design)
± 500 fs² over 1000 – 2100 (excluding substrate, by design)
Group Delay Dispersion Transmission (s-pol)± 100 fs² over 1065 – 2050 (excluding substrate, by design)
± 500 fs² over 1038 – 2100 (excluding substrate, by design)
Optical Damage Rating50 mJ/cm² @ 800 nm (50 fs pulse width); test pending; specification based on FS01 Mirror test results
Flatness1λ P-V RWE @ 632.8
Flatness / RWE ClassificationSuper-resolution / TIRF
Transmitted Wavefront Errorλ/10 PV over CA @ 632.8
Reflected Wavefront Error< 1λ P-V RWE @ 632.8


Physical Specifications (for standard parts - please contact us for custom sizes)
Mounted / UnmountedUnmounted
ShapeRectangular
Size25.2 x 35.6 x 1.1 mm
Transverse Dimensions, LxW25.2 mm x 35.6 mm
Transverse Tolerance, Mounted± 0.1 mm
Substrate Thickness Tolerance, Unmounted± 0.05 mm
Filter Thickness, Unmounted1.05 mm
Filter Thickness Tolerance, Unmounted± 0.05 mm
Clear Aperture≥ 85% (elliptical)
Surface Quality (Scratch-Dig)60-40
Substrate Thickness1.05 mm
Substrate TypeLow-autofluorescence optical quality glass


FF980-Di01-t1-25x36

  • Size: 25.2 x 35.6 x 1.1 mm

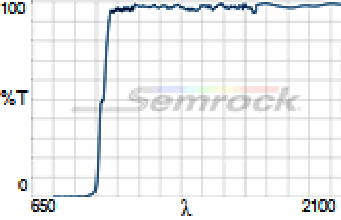

Transmission
