880 nm BrightLine® multiphoton 2P short-pass super-resolution / TIRF dichroic beamsplitter

Semrock Logo

Innovative short pass dichroic beamsplitter optimized for 2-photon laser excitation in a standard epi-fluorescence microscope configuration with reflected excitation and transmitted emission.

The 2-photon (Green & Red) and 3-photon (Green) excitation regions are ideal for femtosecond pulsed lasers such as 920 nm, Ti:Sapphire, OPO or OPA coupled, and neodymium- and ytterbium-doped lasers, enabling deep tissue imaging with improved contrast. This multiphoton dichroic has low reflected GDD that helps minimize temporal pulse broadening of reflected 910 nm to 1400 nm laser pulses, and very high and flat reflection and transmission bands.

Semrock’s Super-resolution / TIRF dichroics are available in two thicknesses and deliver industry-leading flatness for minimal focus shift and optical wavefront aberrations of the laser beam spot to enable popular imaging and super-resolution techniques such as TIRF, PALM, STORM, structured illumination, STED, and multiphoton imaging.

2.5λ P-V RWE on 1 mm, optimized for reflecting laser beams up to 6 mm in diameter while minimizing RWE
λ/3 P-V RWE on 3 mm, optimized for reflecting laser beams up to 16.7 mm in diameter while minimizing RWE

Note on spectral plots:
In the past, each shipment has included a spectral plot for every filter and every lot code in the shipment. In an effort to be more eco-friendly, we will no longer be including these plots with each shipment. If you require spectral plot data, please see here for more information.

Optical Specifications
Transmission BandTavg > 80% 400 – 420 nm (Rolling Window: 10 nm)
Tavg > 90% 400 – 850 nm
Tavg > 90% 420 – 850 nm (Rolling Window: 10 nm)
Reflection BandRavg > 94% 910 – 1400 nm
Reflection Band, p-polRavg > 90% 910 – 1400
Ravg > 98% 910 – 1400
Laser Wavelength910 - 1400 nm
Edge Wavelength835 nm


General Specifications
Angle of Incidence45 ± 1.5 °
Cone Half-angle2 °
Filter Effective Index1.71 Understanding 'Effective Index of Refraction' neff
Group Delay Dispersion± 1250 fs² over 910 - 1225 nm reflection band for S-Pol and P-Pol
± 500 fs² over 1225 - 1400 nm reflection band for S-Pol and P-Pol
Optical Damage Rating1 J/cm² @ 532 nm (10 ns pulse width)
Flatness / RWE ClassificationSuper-resolution / TIRF
Reflected Wavefront Error< 0.33λ P-V RWE @ 632.8
< 2.5λ P-V RWE @ 632.8
Max Beam Diameter16.7 mm
6 mm


Physical Specifications (for standard parts - please contact us for custom sizes)
Mounted / UnmountedUnmounted
ShapeRectangular
Size25.2 x 35.6 x 1.1 mm
25.2 x 35.6 x 3.0 mm
Transverse Dimensions, LxW25.2 mm x 35.6 mm
Transverse Tolerance, Mounted± 0.1 mm
Clear Aperture≥ 80% (elliptical)
Surface Quality (Scratch-Dig)60-40
Substrate TypeFused Silica
OrientationReflective surface marked with laser dot – Orient in direction of incoming light


FF880-SDi01-t1-25×36

  • Filter Thickness Tolerance, Unmounted: ± 0.05 mm
  • Filter Thickness, Unmounted: 1.05 mm
  • Size: 25.2 x 35.6 x 1.1 mm
  • Substrate Thickness: 1.05 mm
  • Substrate Thickness Tolerance, Unmounted: ± 0.05 mm
    ± 0.1 mm

FF880-SDi01-t3-25×36

  • Filter Thickness Tolerance, Unmounted: ± 0.1 mm
  • Filter Thickness, Unmounted: 3.0 mm
  • Size: 25.2 x 35.6 x 3.0 mm
  • Substrate Thickness: 3.0 mm
  • Substrate Thickness Tolerance, Unmounted: ± 0.1 mm

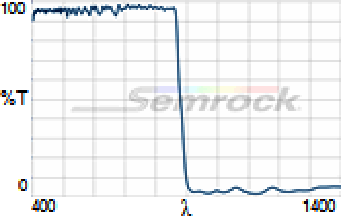

Transmission

Loading chart data...

Optical Density

Loading chart data...

Semrock Spectral Plot Info
FF880-SDi01_Spectrum
