421/491/567/659/776 nm BrightLine® penta-edge standard epi-fluorescence dichroic beamsplitter

Semrock Logo

Multi-edge dichroics have two or more transitions from high reflectance to high transmission. Semrock offers a wide range of dichroic beamsplitters that exhibit steep edges with very high reflection and transmission bands. This standard epi-fluorescence dichroic beamsplitter is optimized only for broadband light sources such as LEDs or similar light engines.

BrightLine dichroic beamsplitter for DAPI/FITC/TRITC/Cy5/Cy7 imaging channels optimized for Lumencor CELESTA light engine® utilizing 408 nm, 473 nm, 545 nm, 635 nm & 750 nm wavelengths.

Note on spectral plots:
In the past, each shipment has included a spectral plot for every filter and every lot code in the shipment. In an effort to be more eco-friendly, we will no longer be including these plots with each shipment. If you require spectral plot data, please see here for more information.

Optical Specifications
Transmission BandBand 1: Tavg > 93% 426 – 456 nm
Band 2: Tavg > 93% 498 – 524 nm
Band 3: Tavg > 93% 574 – 611 nm
Band 4: Tavg > 93% 667 – 701 nm
Band 5: Tavg > 93% 784 – 850 nm
Reflection BandBand 1: Ravg > 95% 369 – 413 nm
Band 2: Ravg > 95% 471 – 483 nm
Band 3: Ravg > 95% 541 – 557 nm
Band 4: Ravg > 95% 630 – 647 nm
Band 5: Ravg > 95% 725 – 757 nm
Edge WavelengthBand 1: 421 nm
Band 2: 491 nm
Band 3: 567 nm
Band 4: 659 nm
Band 5: 776 nm


General Specifications
Angle of Incidence45 ° (Tavg > 93%)
45 ± 1.5 ° (Ravg > 95% & Tavg > 90%)
Cone Half-angle2 °
SteepnessStandard
Filter Effective Index1.79 Understanding 'Effective Index of Refraction' neff
Optical Damage RatingTesting has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm²) for over 500 hrs.
Flatness / RWE ClassificationStandard Epi-fluorescence
Reflected Wavefront Error>> 6λ P-V RWE @ 632.8


Physical Specifications (for standard parts - please contact us for custom sizes)
Mounted / UnmountedUnmounted
ShapeRectangular
Size25.2 x 35.6 x 1.1 mm
22.0 x 29.0 x 1.1 mm
Transverse Dimensions, LxW25.2 mm x 35.6 mm
Transverse Tolerance, Mounted± 0.1 mm
Filter Thickness, Unmounted1.05 mm
Filter Thickness Tolerance, Unmounted± 0.05 mm
Clear Aperture≥ 80% (elliptical)
Surface Quality (Scratch-Dig)60-40
Substrate Thickness1.05 mm
Substrate TypeLow-autofluorescence optical quality glass
OrientationReflective surface marked with part number – Orient in direction of incoming light


FF421/491/567/659/776-Di01-22x29

  • Size: 22.0 x 29.0 x 1.1 mm

FF421/491/567/659/776-Di01-25x36

  • Size: 25.2 x 35.6 x 1.1 mm

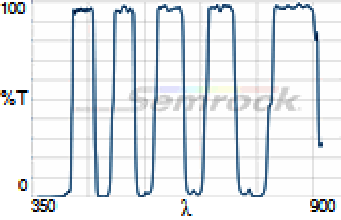

Transmission

Loading chart data...

Optical Density

Loading chart data...

Semrock Spectral Plot Info
FF421_491_567_659_776-Di01__Spectrum
