805/22 nm Nanopede™ single-band bandpass filter

Semrock Logo

Individual fluorescence bandpass filters that have been optimized for use in a variety of fluorescence instruments. Pair this filter with other Nanopede filters to step through the spectrum in 20 nm Full-Width, Half Max (FWHM) steps and
the NIR spectrum in 30 nm FWHM steps. This value approach to filter design provides essential filter performance for detector-based applications.
This filter family is designed for scattered light and point detection applications only, for imaging applications, consider our BrightLine filters.

Size

12.5 mm

Optical Specifications
FWHM Band 1: 30 nm
Transmission Band 1: Tavg > 93% 794 – 816 nm
General Specifications
Angle of Incidence 0 ± 5 degrees
Optical Damage Rating Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hours.
Cone Half-angle 7 degrees
Physical Specifications (for standard parts – please contact us for custom sizes)
Filter Thickness (unmounted) 2.0 mm
Filter Thickness Tolerance (unmounted) ± 0.1 mm
Scratch-Dig 80-50
Filter Thickness Tolerance (mounted) ± 0.1 mm
Filter Thickness (mounted) 3.5 mm

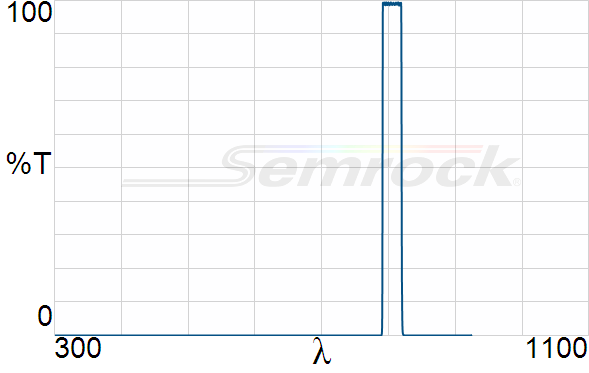

Transmission

Loading chart data...

Optical Density

Loading chart data...

Semrock Spectral Plot Info
